Descrizione

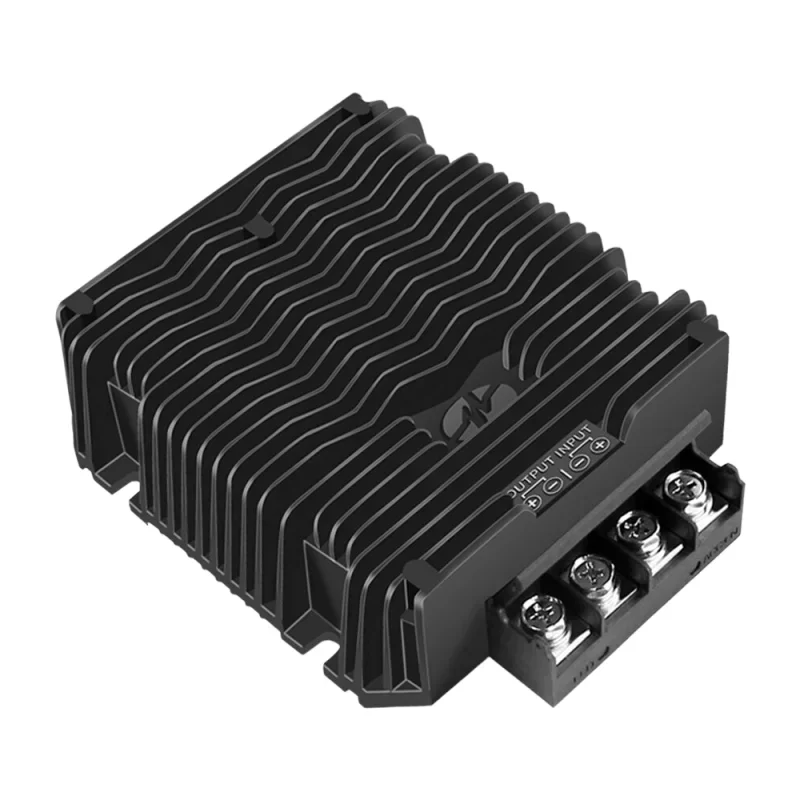

Very high quality DC/DC voltage converter from 12V DC to 48V DC max. 20A.
Very wide input voltage range.
Input voltage: 12 V DC (range 10-20 V DC)
Output voltage: 48 V DC, max. 20A
Efficiency: 96.8%
No-load consumption: max. 100mA
Protection against overload, overvoltage, overheating, short circuit
Aluminum construction with fins for heat dissipation
Certificates: CE, ROHS
Working temperature: -40 ~ +80 °C
Ambient humidity: 0~95%
Protection: IP68
Size: 140x120x42.5mm
Weight: 1200g
