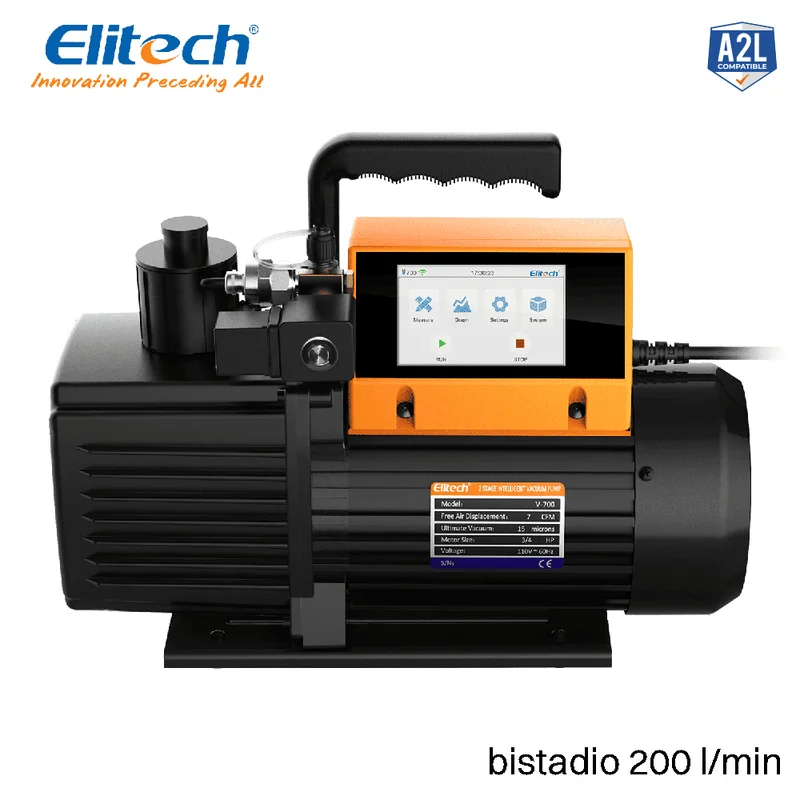

Two-stage vacuum pump 200 l/min with built-in digital vacuum gauge – Elitech V700 Description:
The Elitech V700 vacuum pump is a professional two-stage pump designed for HVAC/R use and refrigeration system maintenance, combining high suction efficiency, intelligent control and digital vacuum monitoring. Thanks to its intuitive interface and Bluetooth app integration, it is an advanced tool for refrigeration technicians and professional operators.
Features:
Suction performance: flow rate of about 7 CFM (about 200 l/min / 3 L/s) with 2-stage technology for deep and stable vacuum.
Built-in digital vacuum gauge: 4 color touchscreen display showing the vacuum value and process trend in real time.
Intelligent control: motor and solenoid valve automatically regulate the suction process based on the detected vacuum data.
App monitoring: Bluetooth connection up to 10 m to follow and record the vacuum process on smartphone or tablet, with charts and historical data.
Leak evaluation: automatic analysis of vacuum changes to estimate the presence of any leaks in the system.
Estimated time extraction: display of the estimated remaining working time during evacuation.
Technical data:
Number of stages: 2 (two-stage)
Pumping speed: 7 CFM / ~200 l/min (3 L/s)
Ultimate vacuum achievable: 15 microns
Vacuum gauge accuracy: ±10% up to 10,000 microns / ±20% from 10,000 to 19,000 microns
Motor: AC 3/4 HP (~550 W)
Power supply: 110 V / 60 Hz or 220 V / 50 Hz
Oil volume: 650 ml
Dimensions: 470 × 267 × 380 mm
Approximate weight: ~14.8 kg
Air connection: standard 1/4 SAE
Product code: V700
