Pre-insulated Copper Roll 50 m 3/8 – for Air Conditioning and Refrigeration-Spedizione veloce

Descrizione

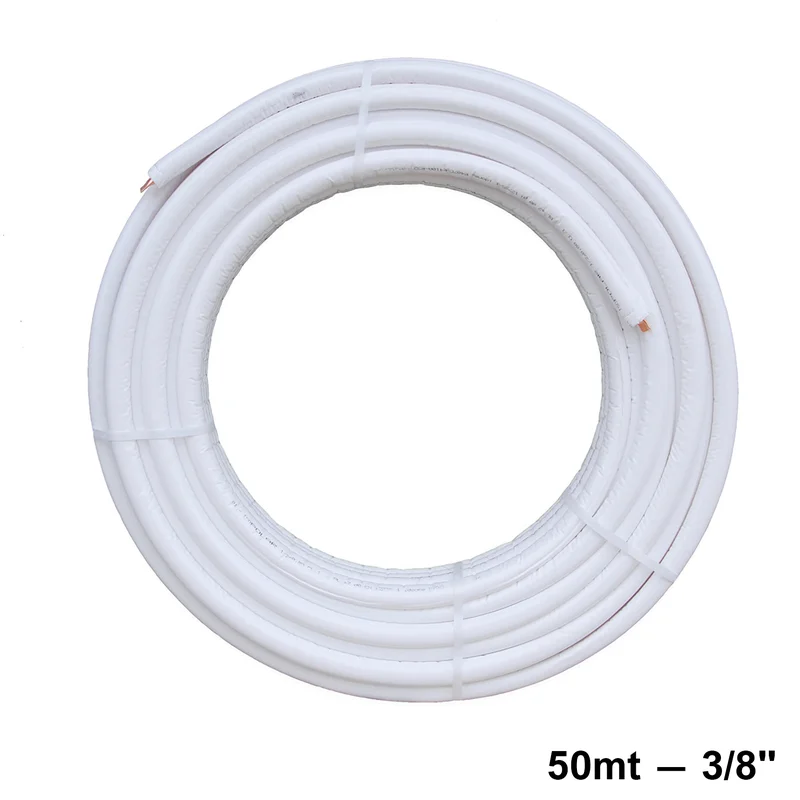

Copper Roll 50 m Ø 3/8” – 9.52 mm
for air conditioning and refrigeration systems
SUITABLE FOR GAS R410A – R407C – R22 – R404A…
Copper Tube Features:

Annealed copper (R220), with mechanical properties, dimensions, tolerances, and eccentricities conforming to UNI EN 12735-1 standards.

Usable with refrigerants R32, R407C, and R410A, internal cleaning and dehumidification with inert gas with a maximum overall residue of 0.034 g/m², and sealed ends as per ASTM B280.

Insulation:
Cross-linked polyethylene foam with the following technical values:
Thermal conductivity at 40°C 0.040 W/m*K
Water vapor diffusion resistance factor (anti-condensation) 10000
Fire reaction class 1
Operating temperature -80°C/+120°C
Does not contain CFCs
External coating made of extruded polyethylene (LDPE), white, with flame retardant additives, adherent to the foam to ensure high anti-condensation performance, excellent resistance to abrasion and tearing.
Technical Specifications:

Alloy: Copper min. CU-DHP 99.9

Standard: EN 12735-1

Tube Diameter: 3/8” – 9.52 mm

Tube Thickness: 0.8 mm

Roll Length: 50 meters

Insulation:

Material: Polyethylene foam (LDPE)

Insulation Thickness: 7 mm

Color: White

Self-extinguishing: Class 1

Product Code: CI.TR3/8
