Descrizione

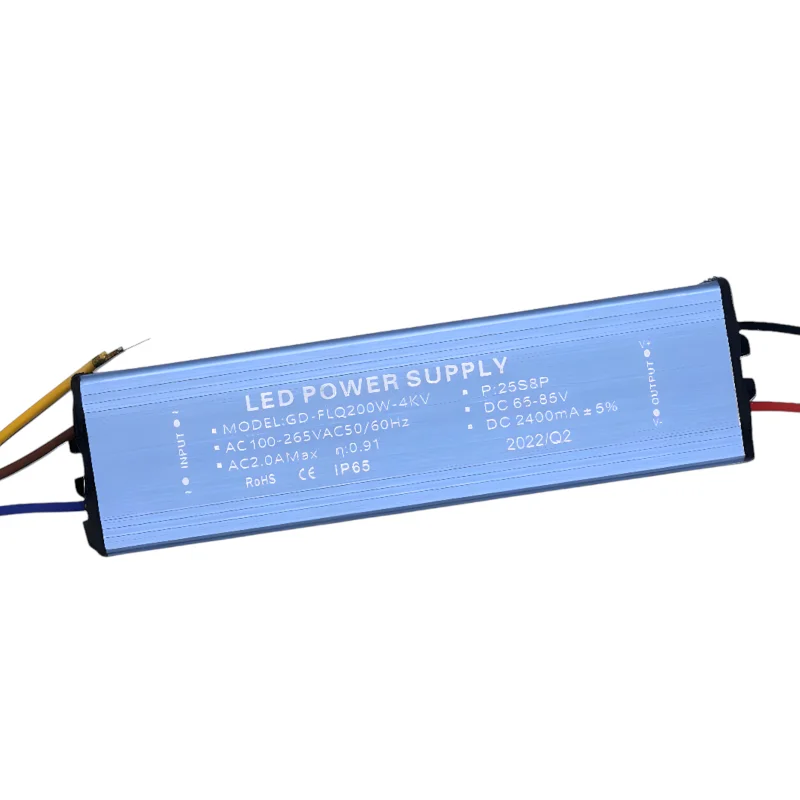

The powerful LED power supply with constant current 2400mA is designed for demanding LED applications such as spotlights, industrial and outdoor lighting. Thanks to the wide input range AC100265V, robust aluminum construction and IP65 protection, it provides stable power supply even in harsh conditions and significantly extends the life of LED modules.
Technical specifications
Power: 200W
Output current: 2400mA ±5%
Output voltage: DC65-85V
Open circuit voltage: DC120V (MAX)
Input voltage: AC100265V, 50/60Hz
Driver type: Non-isolated – constant current
Body material: Aluminum alloy – high cooling efficiency
Protection: IP65 water and dust resistance
Weight: 232g
Dimensions: 130 × 36 × 25 mm
Certification: CE, ROHS,
PF: 0.95
Surge protection: 4 kV
Functions and features
Constant current 2400mA for powerful LED modules 6585V.
The non-insulated design ensures high efficiency and compact dimensions.
Aluminum construction with passive cooling for long-term operation.
High compatibility with a wide range of AC input voltage.
Suitable for parallel and series modes depending on the type of LED installation.
Stable output without flickering and without current fluctuations.
IP65 protection allows use outdoors even in dusty environments.
Ideal for
LED spotlights 6585V
Industrial and outdoor lighting
Architectural lighting of buildings
Powerful COB LED modules
LED headlights and strong light panels
Package contents
1× LED power supply 200W, 2400mA, DC6585V (IP65)
Why choose this product?
Strong current of 2400mA to power powerful LED chips.
Compact body with high resistance and perfect heat dissipation.
IP65 protection for trouble-free outdoor use.
Reliable operation even with input voltage fluctuations.
CE and ROHS certification a guarantee of safety and quality.
