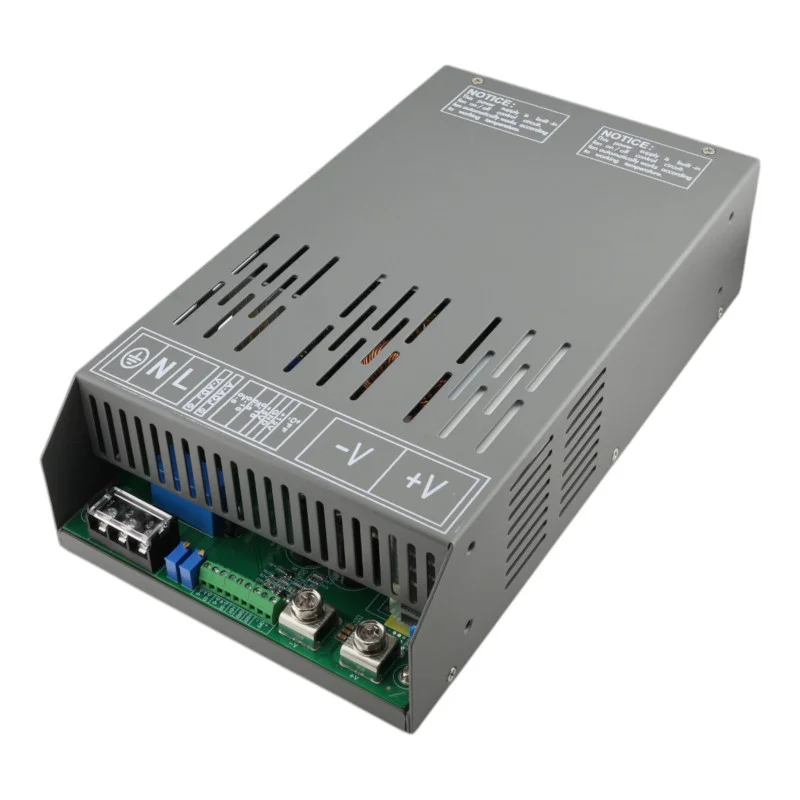

Introducing the IPS-SP-1500 series of highly reliable industrial switched power supplies, designed for demanding applications requiring precisely regulated power supply. Each model offers smooth regulation of output voltage and current, allowing precise adaptation to your application requirements. These robust supplies, with metal construction and IP20 protection, are ideal for installation in distribution cabinets and industrial systems.
Key Features:
Variable Output Voltage: Smoothly adjustable from 0 V to 12 V DC using a precise adjustment trimmer
High Output Current: Stable 125 A for demanding applications
Wide Input Voltage Range: 180264 V AC, 4565 Hz
High Efficiency: 85% for economical operation with minimal heat losses
Active Cooling: Ensures optimal operating temperature even under high load
Comprehensive Protective Functions:
Overload protection (105%150%)
Overvoltage protection
Short-circuit protection with automatic recovery
Thermal protection at 70 °C with automatic recovery when dropping below 50 °C
Practical Design:
Standard screw terminals for easy connection
LED indicator for visual power monitoring
Durable metal construction for long lifespan
Advanced Control Functions:
External Potentiometer: Remote control of voltage and current
Analog Voltage Control: Support for 05 V / 010 V control signal
Auxiliary Power Output: 12 V 0.5 A for powering external devices
Remote Switching: Default state on, off at high level (3 V12 V)
Ideal Applications:
Automation Systems: Control of industrial processes and production lines
Servomotors and Motors: Precise power control for various drives
Telecommunication Devices: Reliable power supply for critical communication systems
Industrial Control Systems: Stable power supply for PLCs and other control elements
Testing and Measuring Equipment: Precise power supply for laboratory and testing applications
Entry Gates and Security Systems: Uninterruptible power for security elements
Technical Specifications:
Input Voltage: 180264 V AC, 4565 Hz
Output Voltage: 012 V DC
Output Current: max. 125 A (12 V DC)
Output Voltage Accuracy: ± 1.0%
Line Regulation: ± 1.0%
Load Regulation: ± 1.0%
Efficiency: 85%
Rise Time: 1500 ms, 100 ms at 230 V AC (full load)
Output Voltage Ripple: 2001000 mV (depending on model)
Insulation Resistance: 100 M at 500 V DC (25 °C, 70% RH)
Dielectric Strength: I/P-O/P: 1.2 kV AC, I/P-FG: 1.2 kV AC, O/P-FG: 0.5 kV AC
Operating Temperature: -20 °C to +60 °C
Operating Humidity: 090% RH (non-condensing)
Vibration Resistance: 10500 Hz, 2 G (10 min/cycle, X, Y, Z axes for 60 min.)
Dimensions: 277 × 155 × 70 mm (L × W × H)
Weight: 2.4 kg
