Descrizione

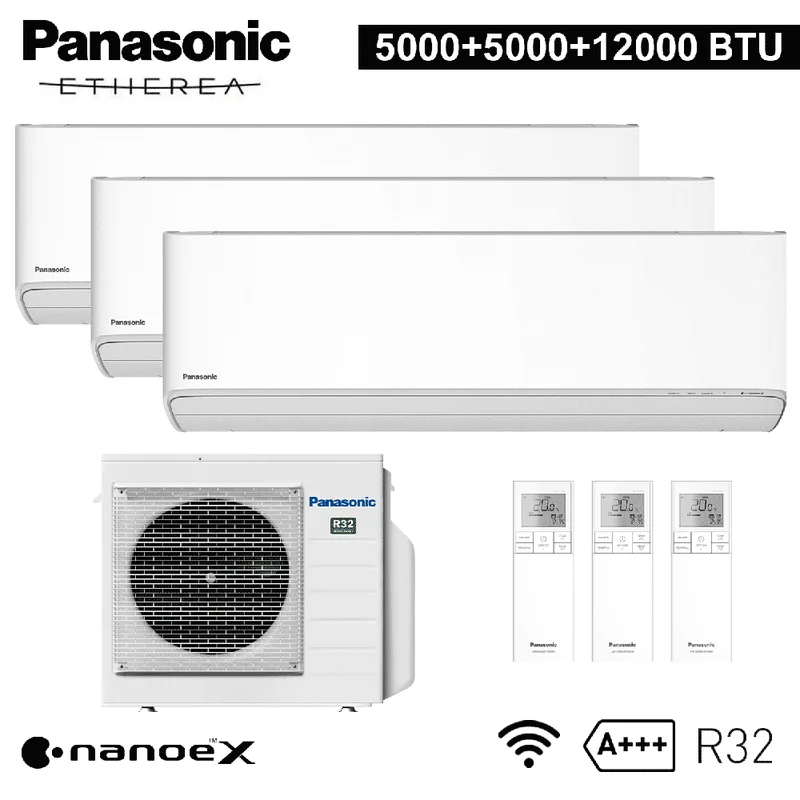

Panasonic ETHEREA R32 trial split air conditioner ZKE series – 5000+5000+12000 btu A+++ WIFI NanoeX General features:
High-efficiency trial split system with inverter technology and eco-friendly R32 refrigerant
Panasonic Etherea indoor units with Nanoe X technology for active 24/7 air purification
Built-in Wi-Fi for remote control via Panasonic Comfort Cloud app
Energy class A+++ in cooling and A++ in heating
Ultra-quiet operation with Quiet and Super Quiet modes
Compatible with voice controls and BMS systems
Modern and compact design, ideal for residential multisplit installations
Model:
Series: Panasonic ETHEREA R32 ZKE
Indoor unit model and Btu: 2× CS-MZ16CKE (5,000 BTU) + CS-Z35CKEW (12,000 BTU)
Outdoor unit model: CU-3Z52CBE
Type: air-to-air multisplit heat pump
Energy efficiency:
Seasonal efficiency:
SEER / SCOP (average climate): SEER 8.70 / SCOP 4.70
Energy Efficiency Class (Cooling): A+++
Energy Efficiency Class (Heating): A++
Seasonal energy consumption kWh/year: 209 kWh/a (cooling) 1609 kWh/a (heating)
Performance:
Cooling capacity (kW): 1.60 + 1.60 + 3.50
Heating capacity (kW): 2.60 + 2.60 + 4.50
Indoor unit sound pressure MAX-MIN (dB(A)): CS-MZ16CKE 37/21 dB(A) CS-Z35CKEW 45/21 dB(A)
Outdoor unit sound pressure MAX-MIN (dB(A)): 47 / 48 dB(A)
Cooling power input kW: 1.09 kW
Heating power input kW: 1.38 kW
Electrical data:
Power supply ( / V / Hz): 1 / 230V / 50Hz
Technical specifications:
Refrigerant gas: R32
Liquid / gas pipe diameter (inches): 1/4″ 3/8″
Maximum piping length with standard charge: 30 m
Maximum piping length with additional charge: up to 50 m total
Maximum height difference (outdoor unit above): 15 m
Operating limits (outdoor temperature): Cooling 10°C / +46°C Heating 15°C / +24°C
Dimensions and weight:
Indoor Unit CS-MZ16CKE: 295×870×229 mm 10 kg
Indoor Unit CS-Z35CKEW: 295×870×229 mm 11 kg
Outdoor Unit CU-3Z52CBE: 795×875×320 mm 61 kg
Product code: ETHEREA-X-R32-Z161635(52)
