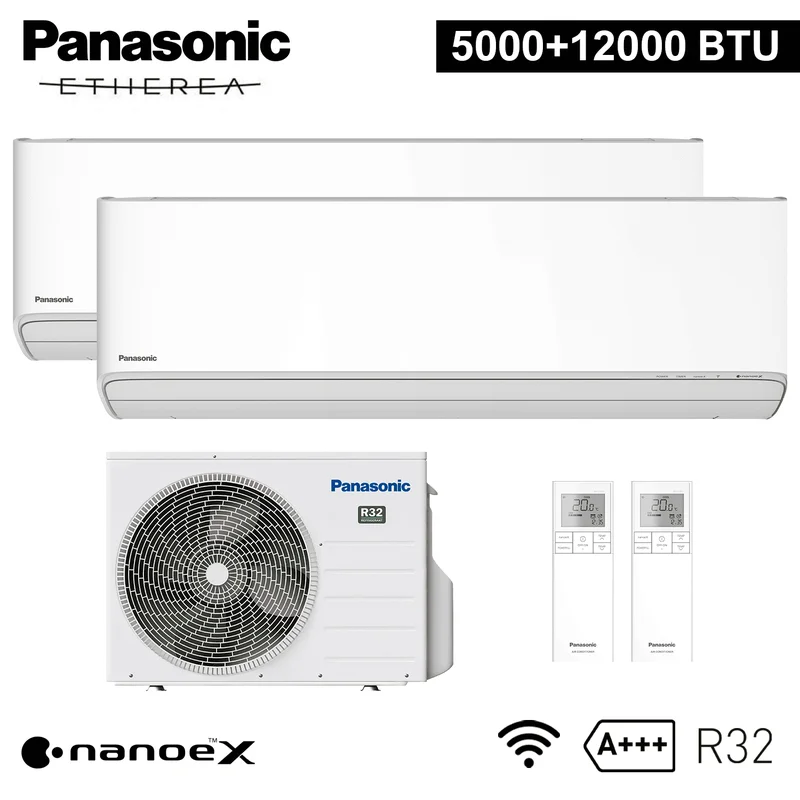

Panasonic ETHEREA R32 dual split air conditioner series 5000+12000 btu A+++ with WIFI NanoeX General features:
High-efficiency dual split system with inverter technology and eco-friendly R32 refrigerant
Panasonic Etherea indoor units with Nanoe X technology for active air purification
Built-in Wi-Fi for remote control via Panasonic Comfort Cloud app
Energy class A+++ in cooling and A++ in heating
Quiet operation with Quiet and Super Quiet modes
Compatible with voice controls and BMS management systems
Modern and compact design, ideal for residential installations
Model:
Series: Panasonic ETHEREA R32
Indoor unit model and Btu: CS-MZ16CKE (5,000 BTU) CS-Z35CKEW (12,000 BTU)
Outdoor unit model: CU-2Z35CBE
Type: air-to-air multisplit heat pump
Energy efficiency:
Seasonal efficiency:
SEER / SCOP (average climate): SEER 9.10 / SCOP 4.80 (outdoor unit CU-2Z35CBE)
Energy efficiency class (Cooling): A+++
Energy efficiency class (Heating): A++
Seasonal energy consumption kWh/year: 135 kWh/a (cooling) 933 kWh/a (heating)
Performance:
Cooling capacity (kW): 1.60 kW (CS-MZ16CKE) 3.50 kW (CS-Z35CKEW)
Heating capacity (kW): 2.60 kW (CS-MZ16CKE) 4.50 kW (CS-Z35CKEW)
Indoor unit sound pressure MAX-MIN (dB(A)): CS-MZ16CKE 37/21 dB(A) CS-Z35CKEW 45/21 dB(A)
Outdoor unit sound pressure MAX-MIN (dB(A)): 48 / 50 dB(A)
Cooling power input kW: 0.76 kW (outdoor unit)
Heating power input kW: 0.83 kW (outdoor unit)
Electrical data:
Power supply ( / V / Hz): 1 / 230V / 50Hz
Technical specifications:
Refrigerant gas: R32
Liquid / gas pipe diameter (inches): 1/4″ 3/8″
Maximum piping length with standard charge: 20 m
Maximum piping length with additional charge: up to 30 m total
Maximum height difference (outdoor unit above): 10 m
Operating limits (outdoor temperature): Cooling 10°C / +46°C Heating 15°C / +24°C
Dimensions and weight:
Indoor unit CS-MZ16CKE: 295×870×229 mm 10 kg
Indoor unit CS-Z35CKEW: 295×870×229 mm 11 kg
Outdoor unit CU-2Z35CBE: 619×824×299 mm 37 kg
Product code: ETHEREA-X-R32-Z1635(35)
