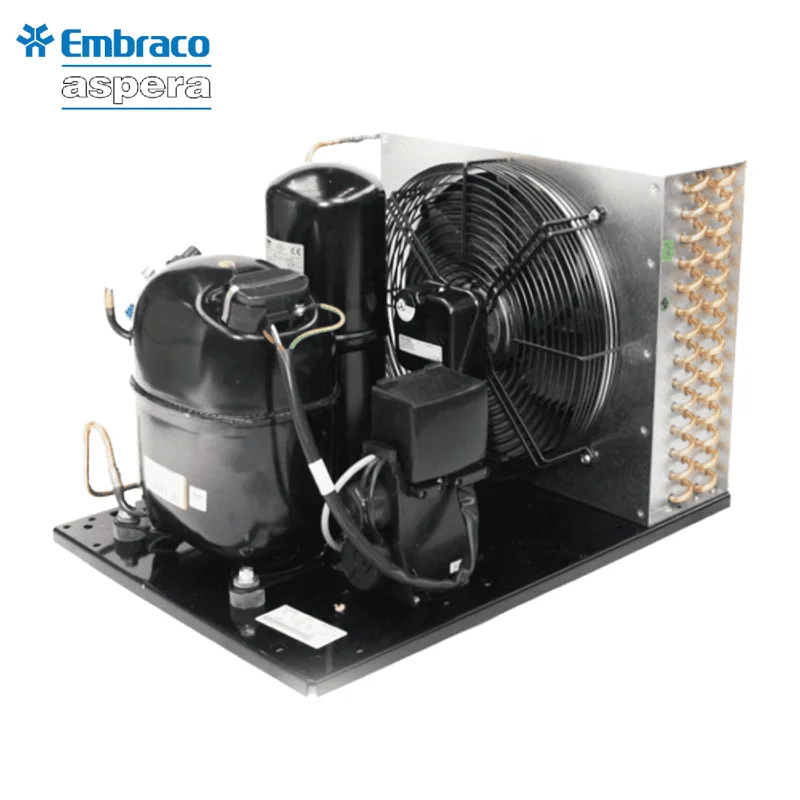

Condensing unit with valve UNJ2212GS Embraco Aspera R404a LBP 380V Description:
The Embraco Aspera UNJ2212GS condensing unit is designed for low-temperature applications (LBP) and represents a reliable and high-performance solution for professional refrigeration systems. Equipped with an NJ2212GS compressor and optimized to operate with R-404A refrigerant, it ensures high energy efficiency and constant output even in demanding operating conditions. The compact and robust structure, combined with compliance with EN13215_RG20 standards, ensures stable operation and long-lasting durability over time.
Thanks to the air flow rate of 800 m³/h and the 3R12T condenser, the unit offers excellent heat dissipation capacity, maintaining high performance even with ambient temperatures up to 43°C. The 34W fan motor ensures a constant air flow, while the 2.3-liter receiver allows optimal refrigerant management. The valve configuration and compatibility with professional applications make it ideal for refrigerated counters, freezer rooms, display cabinets and commercial refrigeration systems.
The UNJ2212GS also stands out for its energy efficiency (up to 1.49 W/W at -15°C) and for a cooling capacity that reaches 2378 W at -10°C with an ambient temperature of 25°C. The combination of these features makes it a reliable choice for those who need high performance, optimized consumption and maximum operating continuity.
Features:
Designed for low-temperature LBP applications.
High energy efficiency with performance up to 1.49 W/W.
Compact and robust structure for professional installations.
Optimized ventilation with air flow rate of 800 m³/h.
Compatible with R-404A refrigerant.
Stable performance even with high ambient temperatures.
Specifications:
Model: UNJ2212GS
Refrigerant: R-404A
Application: LBP
Power supply: 380420 V, 50 Hz, 3PH
Nominal cooling capacity: 908 W at -35°C (ambient 32°C)
Nominal efficiency: 1.18 W/W
Air flow rate: 800 m³/h
Dimensions: 481 mm (L) × 410 mm (W) × 324 mm (H)
Weight: 38 kg
Receiver: 2.3 L
Fan: 34W/400V diameter 275 mm
Valves: Discharge 3/8″ (2110049), Suction 5/8″ (2110054)
Condenser: 3R12T (code 2451140)
Test standard: EN13215_RG20
Product code: UNJ2212GS
