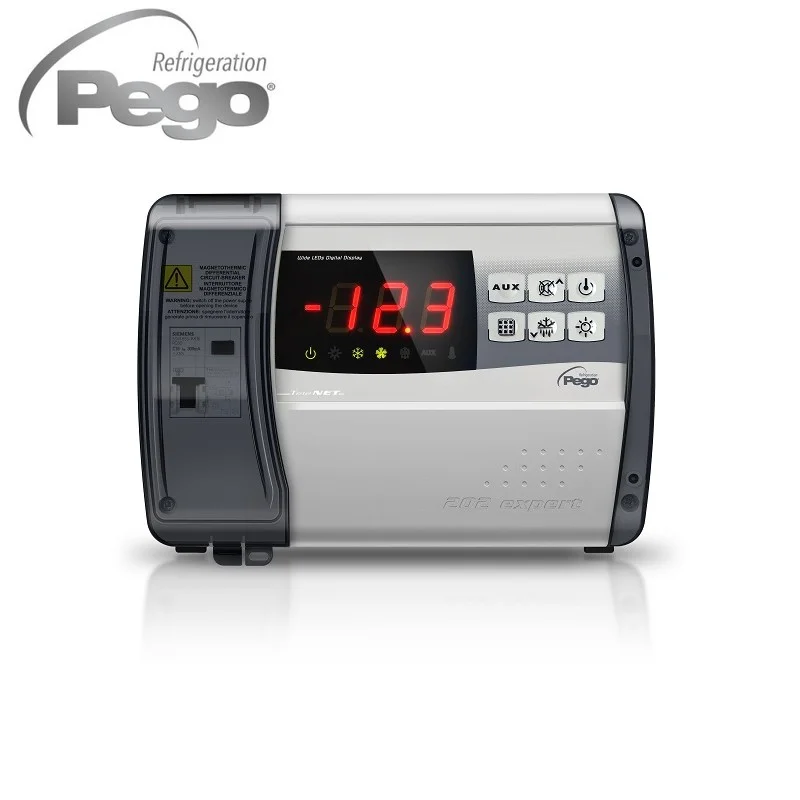

Control panel – ECP 202
For refrigerated cells
Description:
The ECP 202 panel allows for complete management of all components in a refrigeration system with new added functionalities.
Applications:
Complete management of single-phase refrigeration systems up to 2HP, either static or ventilated, with defrosting by stop or electric, with direct compressor stop or pump-down.
Management of dual evaporator systems with dual end-of-defrost temperature probes.
Management of single-phase evaporator unit (single or dual evaporator) with Freon solenoid consent or remote condensing unit consent.
Main features:
Direct management of compressor, defrost resistors, evaporator fans, cell light with outputs with voltage-free contacts.
Integrated differential magnetic circuit breaker for protection and isolation of the refrigeration unit.
Innovative and elegant design. Transparent door to access the differential magnetic circuit breaker with IP65 protection rating.
Auxiliary relay with activation configurable via parameter (alarm, temperature set point, direct command from front button, anti-fogging heater with thermostat, Freon solenoid command in case of pump-down operation of the compressor).
Dedicated condensing unit consent in single evaporator configuration.
RS485 for connection to the industrial supervision network TeleNET.
Safety and protection guaranteed and certified thanks to the integrated differential magnetic circuit breaker, allowing general isolation of the power supply.
Easy wiring.
Simple installation and access thanks to the new hinged cover.
Simple and flexible programming for extremely versatile use.
Ability to set compressor management with pump-down stop.
Reduced installation time and costs thanks to integrated control and protection in a single solution dedicated to each cell.
Real-time clock defrosting.
Independent and simultaneous functions for alarm relay, condensing unit consent, and TeleNET monitoring system.
Advanced HACCP function with detailed storage of the last temperature alarm and counter of previous alarms.
Included probes
Product code: 200202EXPCS
