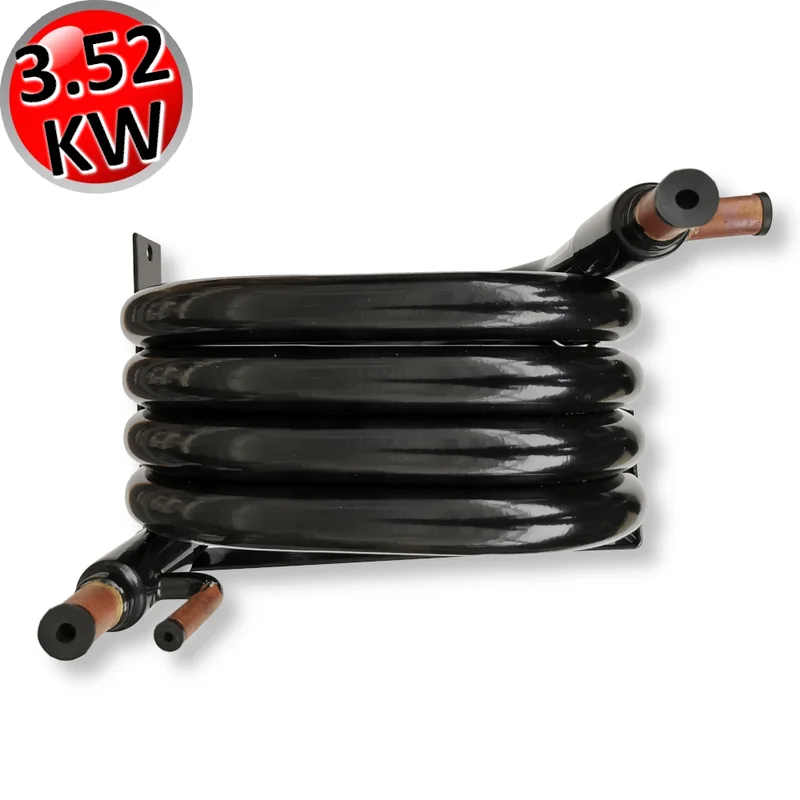

SR-BA-012-H – Water-cooled coaxial condenser 3.52 kW
for refrigeration systems
A water-cooled coaxial condenser is a type of heat exchanger used in refrigeration systems. This device operates based on the principle of condensation, which is the process of a gas transitioning from a gaseous to a liquid state, releasing heat.
Coaxial condensers are preferred for their efficiency in heat exchange, especially when space is limited, as their coaxial design allows for a reduced footprint compared to other types of condensers.
The water-cooled coaxial condenser works by using the principle of heat exchange between two fluids flowing in opposite directions within a coaxial tube. The tube consists of two concentric ducts: an inner and an outer one. The fluid to be cooled (for example, the gaseous refrigerant in a refrigeration system) flows through the smaller inner tube, while water, acting as the cooling fluid, flows through the annular space between the two tubes.
During the condensation process, heat is transferred from the refrigerant to the water, causing the refrigerant to condense from gas to liquid. This heat exchange is made more efficient by the large contact surface between the two fluids and the countercurrent flow, which maximizes the thermal gradient and thus heat transfer.
The main advantage of a coaxial condenser is its compactness and efficiency in heat exchange, making it ideal for applications where space is limited and high cooling capacity is required. Furthermore, using water as a refrigerant fluid can be more convenient and sustainable in some cases, especially where cooling water is readily available.
Specifications:
Refrigerant: Ø 12.70 9.52 mm | 1/2 3/8;
Water: Ø 19.00 19.00 mm | 3/4 3/4;
A: 250 mm;
B: 125 mm;
C: 175 mm;
D: 205 mm;
E: 280 mm;
F: 175 mm.
Net weight: 5.5 Kg.
codice prodotto: SR-BA-012-H
