Descrizione

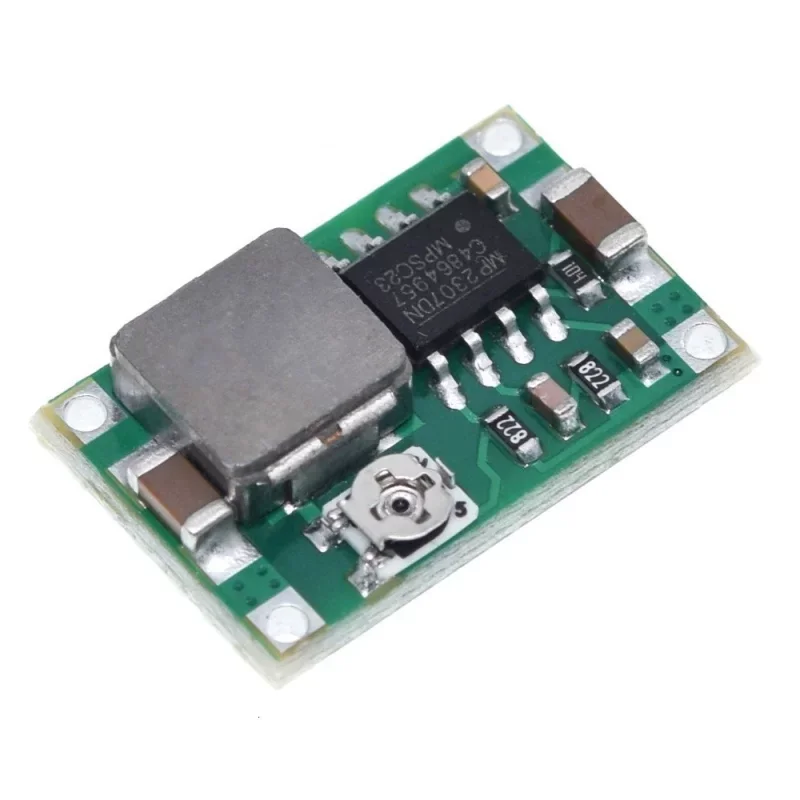

Miniature voltage regulator from 4.5V-23V DC to 1.0V-17V DC (regulates the voltage downwards only)
Input voltage: 4.5-23V DC
Output voltage: adjustable SMD trimmer 1.0-17V DC
Max. current: max. 1.8A, momentarily up to 3A
Output short circuit protection
Efficiency: 96%
Operating temperature: -40 to 85°C
Dimensions: 17x11x5 mm
Weight: 4g
