Very high quality DC/DC voltage converter from 12-24V DC to 20V DC max. 10A.
Very wide input voltage range.
Input voltage: 12/24 V DC (range 10-35V DC)
Output voltage: 20 V DC, max. 10A
Efficiency: 93%
No-load consumption: max. 60mA
Protection against overload, overvoltage, overheating, short circuit

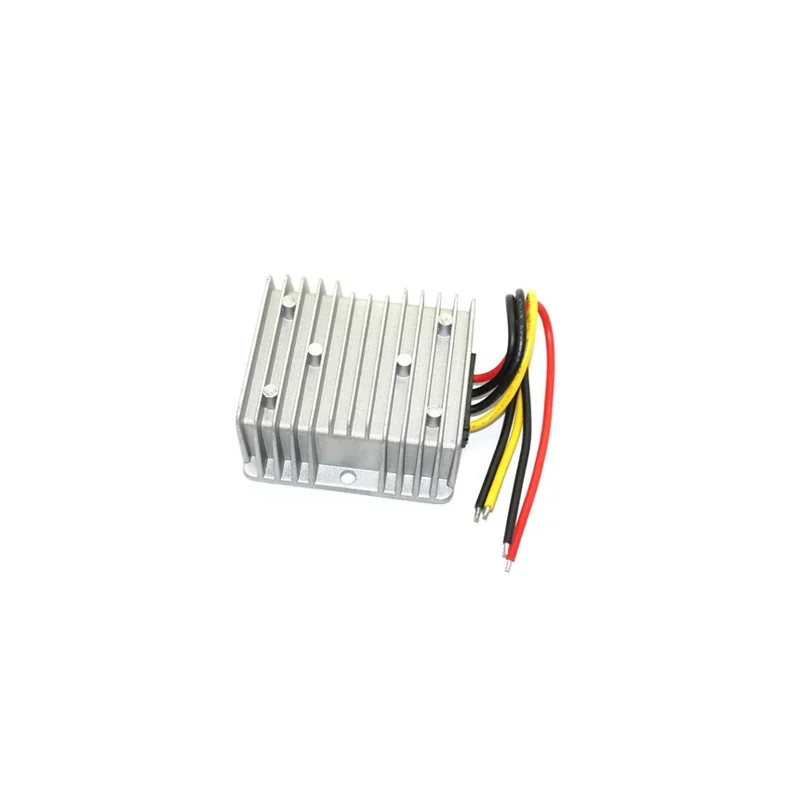

Aluminum construction with fins for heat dissipation
Certificates: CE, ROHS
Working temperature: -40 ~ +80 °C
Ambient humidity: 0~95%
Protection: IP68
Size: 74x74x32mm
Weight: 290g
