Descrizione

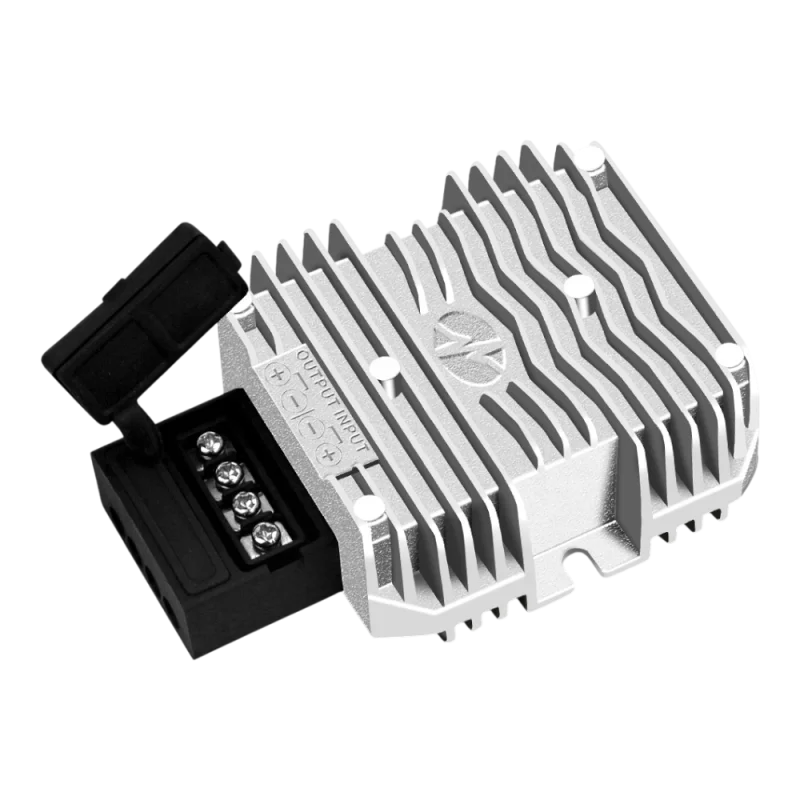

Isolated DC/DC converter designed to convert input voltage 1836V DC to stable 24V DC with output current 5A. It combines high efficiency, galvanic isolation and robust construction resistant to vibrations, moisture and dust thanks to epoxy potting. This converter is ideal for powering industrial systems, telecommunications equipment and control units operating in harsh conditions.
Technical specifications
Input rated voltage: 24V DC
Input range: 1836V DC
Output voltage: 24V DC
Maximum output current: 5A
Maximum output power: 120W
Efficiency: up to 93% (at 24V input)
Electrical isolation: galvanically isolated input and output
Voltage regulation: < 1%
Load regulation: < 2%
Ripple and noise: 14300 mVp-p
No-load consumption: 24 mA at 24Vin
Protections: overvoltage, overcurrent, undervoltage, overheating
Cooling: passive, free air circulation
Operating temperature: 40°C to +80°C
Operating humidity: 10% to 90% RH
Storage temperature: 40°C to +85°C
Weight: 290g
Dimensions: 74 × 74 × 29.5 mm
Input connection: screw terminals
Output connection: screw terminals
Construction: aluminum housing, epoxy potting, surface mount
Certification: CE, RoHS
Functions and features
Galvanically isolated input and output for maximum safety of connected devices.
High efficiency up to 93% with minimal heat loss.
Stable 24V output suitable for industrial modules, sensors and control electronics.
Robust construction with resistance to vibration, moisture and dust.
Ergonomic aluminum heatsink for effective heat dissipation without active cooling.
Compact dimensions allowing installation even in limited spaces.
Ideal for
Industrial control systems and automation
Telecommunications equipment and power infrastructure
Transportation technology and 24V power systems
Power supply for power modules, electronics and sensors
Applications requiring stable and isolated 24V DC
Package contents
1× DC/DC converter 1836V 24V, 5A, isolated
Why choose this product?
High efficiency up to 93% and stable operation over a wide temperature range.
Galvanic isolation protects the system from overvoltage and interference.
Robust design with long service life.
Compact size allows for easy installation.
Reliable 120W power even in demanding operating conditions.
