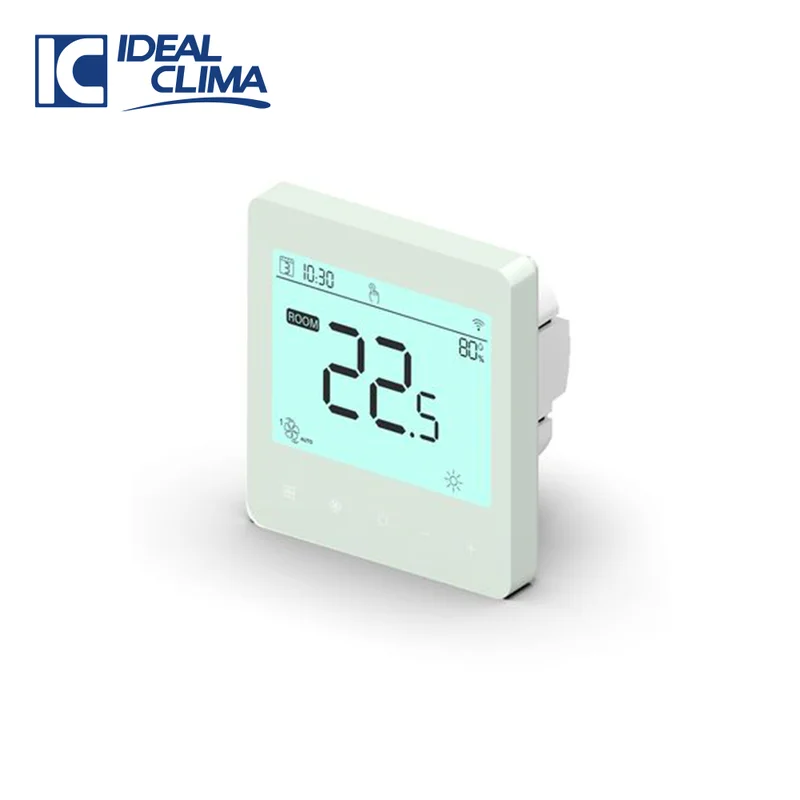

VISION+ WiFi programmable thermostat for Ikaro Ideal Clima Description:
Vision+ is the interface that allows the user to adjust the temperature of a single thermal zone across different periods of the day and week. It is a low-consumption programmer with capacitive buttons, the best option for simple zone control.
Vision allows you to adjust the temperature of a thermal zone. It is equipped with a 0-10 v output to modulate the zone damper and with a live-phase output for the valve. It features a blue backlit lcd display and touch buttons for programming time bands and operating temperature.
Operation:
It is possible to set two daily operating periods for weekdays plus saturday and sunday.
The large backlit lcd display shows the current time, room temperature, and set temperature.
The device has an additional live contact to enable a zone valve or heat generator. Regardless of the set time schedule, it is always possible to manually set the desired temperature at any time.
The programmable thermostat can be installed in dedicated flush-mount boxes or, using an adapter, in 3-module flush-mount boxes.
Vision is supplied with both the customized flush-mount box and the adapters required to use a 503 box (not supplied).
Application range:
The daily-weekly programmer allows modulating control of the zone damper with an integrated proportional-integral modulation algorithm. The temperature can be set for both heating and cooling, with two daily on and off cycles.
Vision finds its natural application in combination with plenum multieasy with modulating dampers.
Technical data:
Power supply: 230 v 50 hz single-phase
Power consumption: w < 1,5
Output signal: v 0-10
Dimensions: mm 85 x 85 x 12
Minimum duration of a time band: min 5
Settable programs: n 2 for the first 5 days; 2 for saturday and 2 for sunday
Backup reserve: yes
Operating temperature: °c 0-45
Storage temperature: °c – 5 +55
Ip protection: ip20
Display: backlit lcd
Installation: flush-mount (in dedicated box or 503)
Weight: kg 0,15
Codice prodotto: TGCL74
