Descrizione
The compact R370 vibration motor is designed for applications requiring stable vibrations, such as small massage devices, model projects, sensors, warning systems or industrial construction. With a choice of 12V or 24V voltage and three speed options, it offers flexible use for a wide range of projects.
Technical specifications
Supply voltage: 6V DC, 12V DC or 24V DC (depending on the selected variant)
Rotation speed: 3000 RPM / 6000 RPM / 8500 RPM (depending on the selected variant)
Motor type: Micro motor, permanent magnet
Commutation: Brushed
Construction: Fully enclosed
Power: 3W
Axis: Ø 2 mm
Motor body dimensions: 30.8 × D24.4 mm
Total length with eccentric weight: 42 mm
Weight dimensions: Ø 24.4 mm, thickness 5 mm
Efficiency: IE1
Current load: Below 36V (manufacturing specification)
Weight: 42g
Protection: IP20
Functions and features
Strong vibration effects thanks to eccentric weight
Speed and voltage selection for optimal project adaptation
Reliable design suitable for long-term operation
Compact dimensions allowing integration into small devices
Stable operation even at higher speeds
Ideal for
Massage devices
Vibrating alert systems
Model making and DIY electronics
Vibration sensor units
Testing and laboratory equipment
Package contents

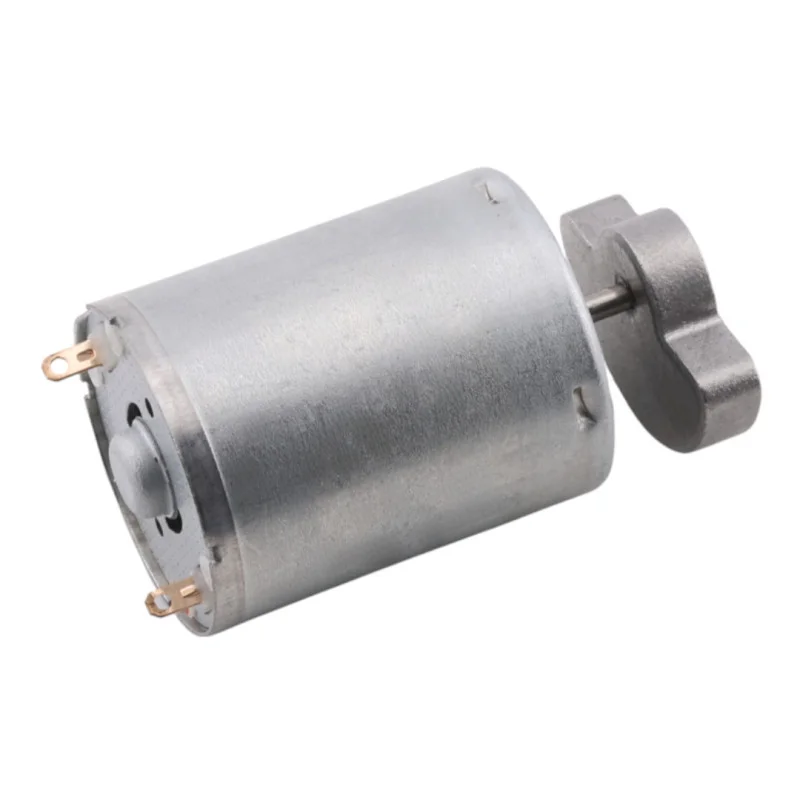

1× Vibration motor R370 with eccentric weight
Why choose this product?
Wide choice of parameters 12/24V and 30008500 RPM
High reliability and quality workmanship
Universal use in industrial, hobby and test applications
Strong vibrations suitable even for more demanding projects
