Descrizione

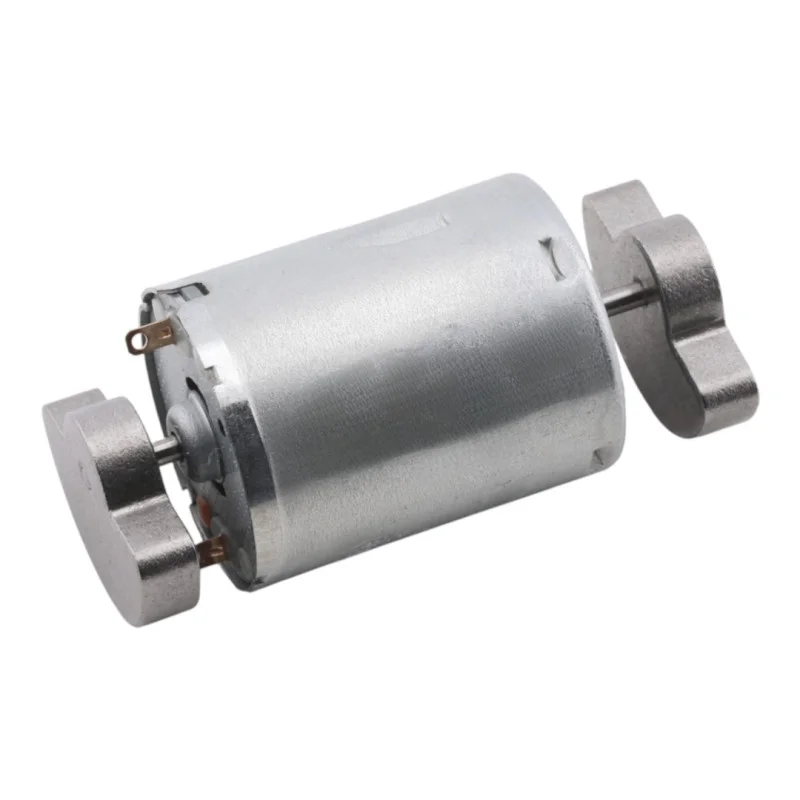

The powerful R370 vibration motor with double eccentric weight is the ideal solution for projects that require strong vibrations, stable operation and the ability to adjust speed and supply voltage. It is suitable for massage devices, warning systems, model making and industrial applications. With 12V and 24V options and three speed settings, you can precisely adjust the power to the needs of your device.
Technical specifications
Supply voltage: 6V DC, 12V DC or 24V DC (depending on the selected variant)
Rotation speed: 3000 RPM / 6000 RPM / 8500 RPM (depending on the selected variant)
Motor type: Micro motor, permanent magnet
Commutation: Brushed
Construction: Fully enclosed
Power: 3W
Axis: Ø 2 mm
Motor body dimensions: 31 × D24.4 mm
Total length with double weight: 51 mm
Weight dimensions: Ø 24.4 mm, thickness 5 mm
Efficiency: IE1
Operating voltage: Below 36V
Weight: 53g
Protection: IP20
Functions and features
Double eccentric weights for significantly stronger vibrations
High-precision rotor for stable speed even under prolonged load
Long-lasting carbon brushes
Robust and closed design suitable for continuous operation
Multiple speeds and voltages to choose from for optimal adaptation
Ideal for
Massage and therapy equipment
Vibrating alert systems
DIY projects and model making
Laboratory and testing equipment
Industrial applications requiring strong vibrations
Package contents
1× R370 vibration motor with double eccentric weight
Why choose this product?
Stronger vibrations than the regular version thanks to the double weight
Precision manufacturing and long service life in demanding conditions
Flexible choice of parameters 12V or 24V and three speed options
Compact dimensions, easy installation and universal use
