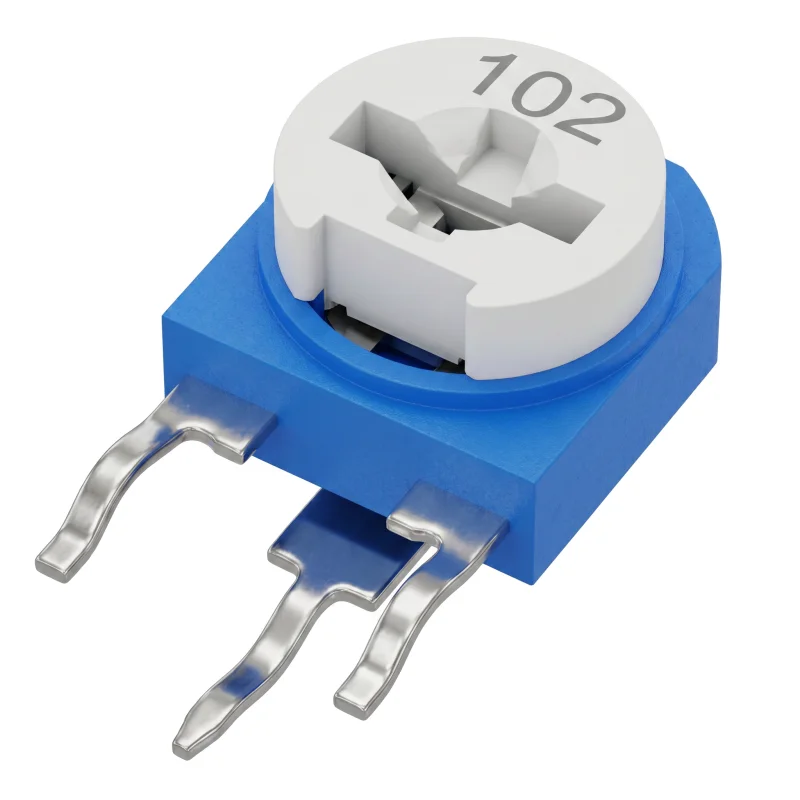

The RM-063 vertical carbon trimmer is a single-turn adjustment potentiometer designed for mounting into electronic circuits. It is used for manual adjustment of the resistance value within the selected variant, for example during calibration, fine-tuning, or service adjustment of a circuit.
Technical Specifications
Type: Carbon trimmer
Design: Vertical
Model designation: RM-063
Size: 5 mm
Adjustment axis: Vertical
Number of turns: 1
Adjustment angle: 200° ± 20°
Resistance tolerance: ±20%
Maximum voltage: 50 V DC
Power dissipation: 0.1 W
Dimensions: 6.4 x 5.2 x 11.3 mm
Pin pitch: 5 mm
Features and Functions
Allows manual resistance adjustment using the top adjustment slot.
Single-turn design is suitable for basic fine-tuning of values in a circuit.
Vertical design saves footprint space on the printed circuit board (PCB).
The three-pin design allows the trimmer to be used as an adjustable voltage divider or variable resistor depending on the wiring.
The product is supplied in the selected resistance variant.
Ideal For
Calibration and adjustment circuits in electronics.
Service repairs and replacement of trimmers with identical type and parameters.
Development prototypes and laboratory wiring.
Printed circuit boards requiring vertical trimmer adjustment.
Package Contents
1x Vertical carbon trimmer RM-063 in the selected resistance variant.
Why Choose This Product
The listed parameters allow selection based on resistance value, tolerance, voltage limit, and power dissipation.
The vertical design with a top adjustment axis allows tuning from above after mounting on the board.
The 5 mm pin pitch makes it easy to verify suitability for a specific design or replacement.
Various resistance values enable use in different types of adjustment circuits.
Installation and Operation Guidelines
Before mounting, verify the compatibility of the resistance value, pin pitch, and mechanical design with your application.
During soldering, avoid excessive thermal stress on the casing and pins.
Perform adjustments using a suitable tool, without applying excessive force to the adjustment mechanism.
Mounting and wiring into electrical equipment should be performed by a person with knowledge of electronic circuits.
Safety Warnings
Do not exceed the maximum voltage of 50 V DC or power dissipation of 0.1 W.
Incorrect wiring or overloading can cause overheating, component damage, or failure of the connected circuit.
Do not mount or modify the component in a live circuit.
Before putting the device into operation, check the circuit wiring polarity, mechanical seating, and the quality of solder joints.
