Ventilation unit with heat recovery D105 with a maximum flow rate of 80 m3/h and a pressure of 60 Pa-Spedizione veloce

Descrizione

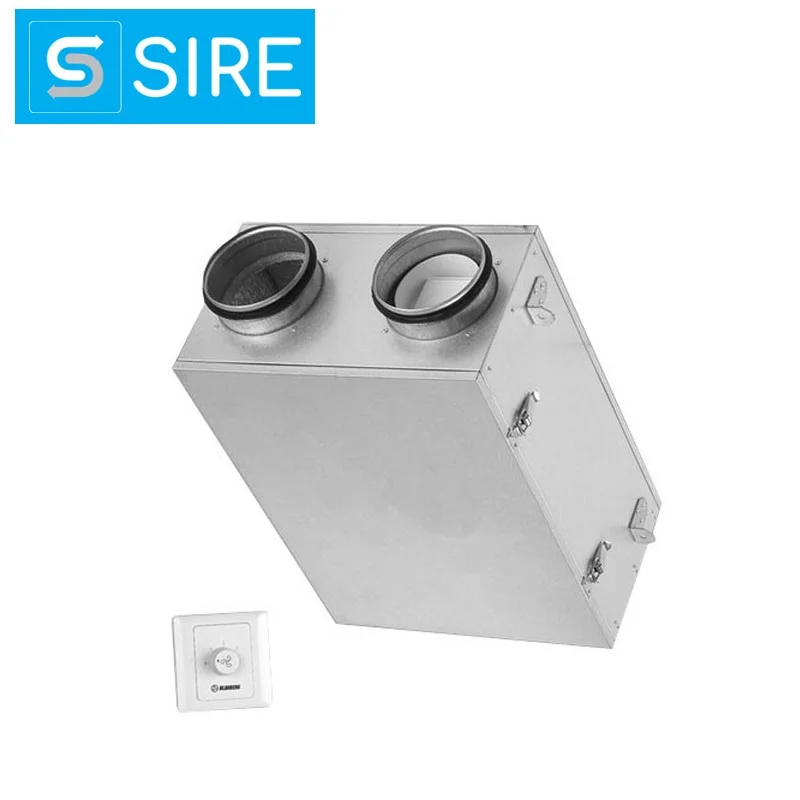

VENTILATION UNIT D105 WITH HEAT RECOVERY
Maximum flow rate 80 m3/h with a pressure of 60 Pa
APPLICATIONS
D105 is a ventilation unit with heat recovery, providing a flow rate of 80 m3/h with a pressure of 60 Pa.
It is suitable for small spaces such as studios of 60-70 m2, bars, small shops, pharmacies, and game rooms.
INSTALLATION
D105 is installed on the ceiling. The unit is equipped with mounting brackets.
The lower cover can be easily removed for access to the filters and to facilitate maintenance operations. The air connections are equipped with rubber seals and non-return dampers.
EXCHANGER
The heat recovery unit, with cross-flow, is made of polymeric cellulose and can transfer both temperature and humidity between the two air flows.
Therefore, there is partial dehumidification of the air during the summer phase, reducing the workload of the refrigeration unit, and partial humidification during the winter phase, preventing the introduction of overly dry air into the environment.
This unit does not require a condensate drain.
Product code: D105
