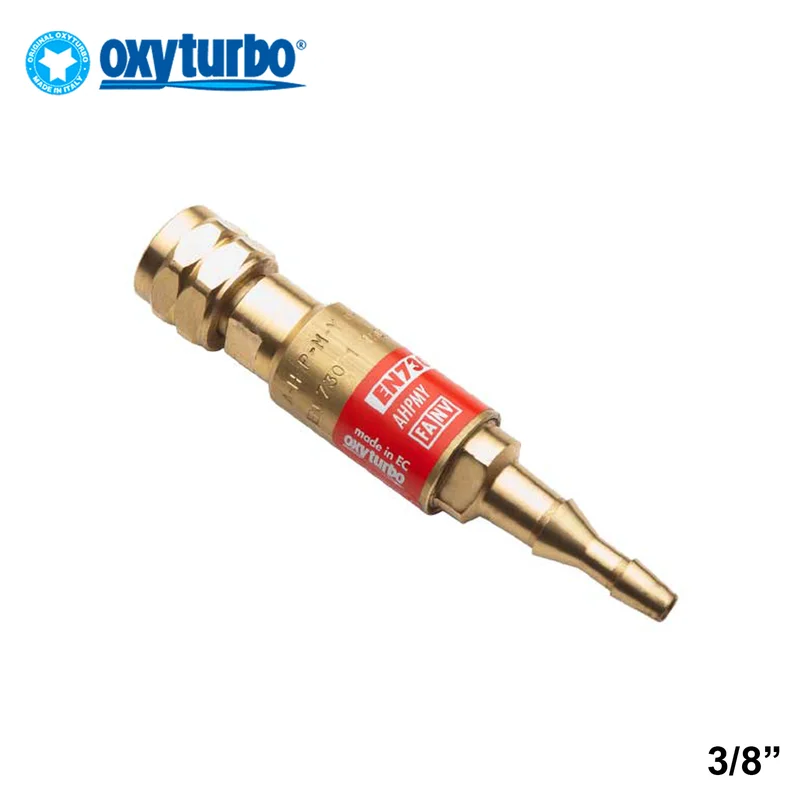

Gas safety valve G3/8 LH hose connector for Ø 711 mm hose for torch handle Description:
The oxyturbo gas safety valve is a protection device designed for use in welding and oxy-fuel cutting systems, installable on the torch handle with hose connector for flexible hoses.
This valve is a double-protection non-return device (also known as a flame back arrestor), designed to prevent both flame flashback and gas backflow towards the source. These valves are essential safety components in gas welding systems using fuel gases and oxygen, as they interrupt the gas flow under abnormal conditions, reducing the risk of accidents.
Features:
Product code: 150262 specifically designed for gas torch handles with hose connector.
Device type: safety valve with flame and gas backflow prevention (double-protection flame back arrestor).
Application: installation on welding/cutting torch handles with flexible hose; protection between hose and handle.
Threaded connection: G3/8 LH (left-hand gas thread, typical for fuel gases).
Hose connector: suitable for flexible hoses with compatible diameter approx. Ø 711 mm.
Approximate weight: about 0.14 kg depending on version and material.
Reference standards: compliant with safety standards for non-return valves in welding gas circuits (EN ISO 730-1 / EN ISO 5175-1).
Function and use:
The valve prevents flame flashback from the torch towards hoses and cylinders, avoiding that flashbacks or gas backflows reach upstream components such as regulators or cylinders. It is mainly intended for flame welding applications (oxy-acetylene, oxy-propane, etc.).
Typical installation involves placing the valve between the flexible hose and the torch handle, with the hose connected to the hose connector and the outlet connected to the handle.
Safety notes:
The valve must be checked and replaced after every flame flashback or at least every 5 years, as required by applicable EN standards.
Use the valve only in welding/cutting gas circuits for which it is designed and with compatible hoses and fittings.
Product code: 150262
