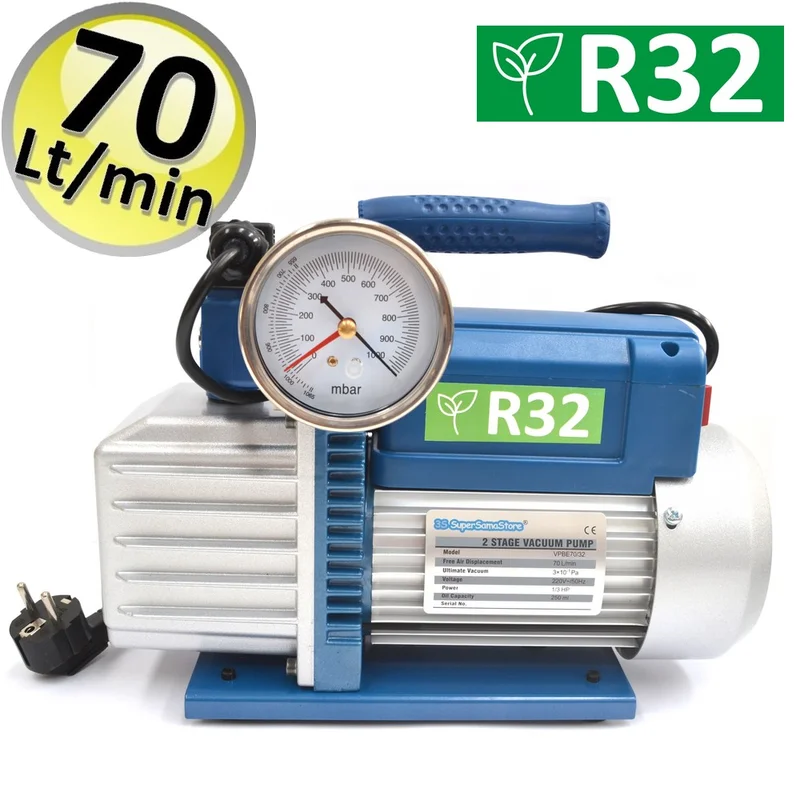

VPBE70/32 – Two-Stage Vacuum Pump 70 L/min
with Solenoid Valve and Vacuum Gauge – for R32 R1234YF Gas
for evacuation according to DIN 8975
Features:
Instructions in Italian
Two-stage model with 70 liters per minute capacity – specific for R32 and R1234YF gas, for evacuation according to DIN 8975
This pump model is made with special fire-resistant insulation on the electrical components, which allows it to be certified against possible explosions or deflagrations caused by the flammability of the R32 and R1234YF gases
The pump can also be used on systems with other refrigerant gases such as: R410A / R407C / R404A / R22 …
Equipped with a vacuum gauge to monitor the vacuum operation
Equipped with a solenoid valve to prevent oil backflow in case of accidental power failure
Fitted with an on-off switch
Oil level indicator
1 pack of oil included
Power cord with Schuko plug
Ergonomic carrying handle
Technical Data:
Two-stage model
Suction capacity: 70 liters per minute – 2.5 CFM
Motor power: 1/3 HP
Power supply: 220 V – 50Hz
Final vacuum: 3×10-1 Pa – 0.003 mbar
Oil in pump: 310 ml
Dimensions: 320x160x240 mm
Weight: 9.30 kg
Connection: 1/4″ SAE
Product Code: VPBE70/32
