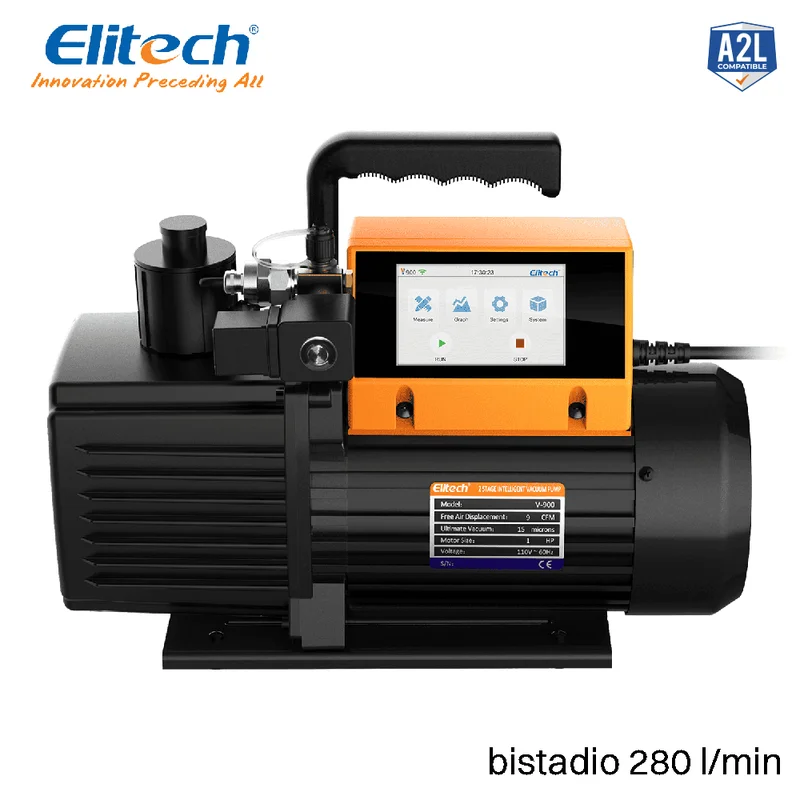

Two-stage vacuum pump 280 l/min with digital vacuum gauge – Elitech V900 Description:
The Elitech V900 vacuum pump is a professional two-stage unit designed for HVAC/R applications and refrigeration system maintenance, combining high performance, intelligent control and ease of use.
Features:
Powerful suction performance with a flow rate of about 9 CFM ( 280 l/min) in two stages, ideal for rapid and efficient evacuation of refrigeration systems.
Digital vacuum gauge and 4 touch-screen interface that displays the vacuum value in real time and makes procedure monitoring easier.
Intelligent motor control and solenoid valve: the system automatically adjusts the suction process based on collected data, improving reliability and accuracy.
Integrated data monitoring via App (Bluetooth): allows you to view vacuum values, charts and work status in real time directly from your smartphone or tablet.
Robust and reliable construction, with constant monitoring of oil and motor temperature to protect the unit and optimize the work cycle.
Technical data:
Number of stages: 2
Pumping speed: 9 CFM (~280 l/min)
Ultimate vacuum achievable: up to ~15 microns
Vacuum reading accuracy: ±10% below 10,000 microns / ±20% from 10,000 to 19,000 microns
Power supply: 110 V / 60 Hz or 220 V / 50 Hz
Motor: 1 HP AC induction motor (750 W)
Oil capacity: ~650 ml
Dimensions / weight: 470×267×380 mm ~15.3 kg
Air interface: 1/4 SAE
Product code: V900
