Descrizione

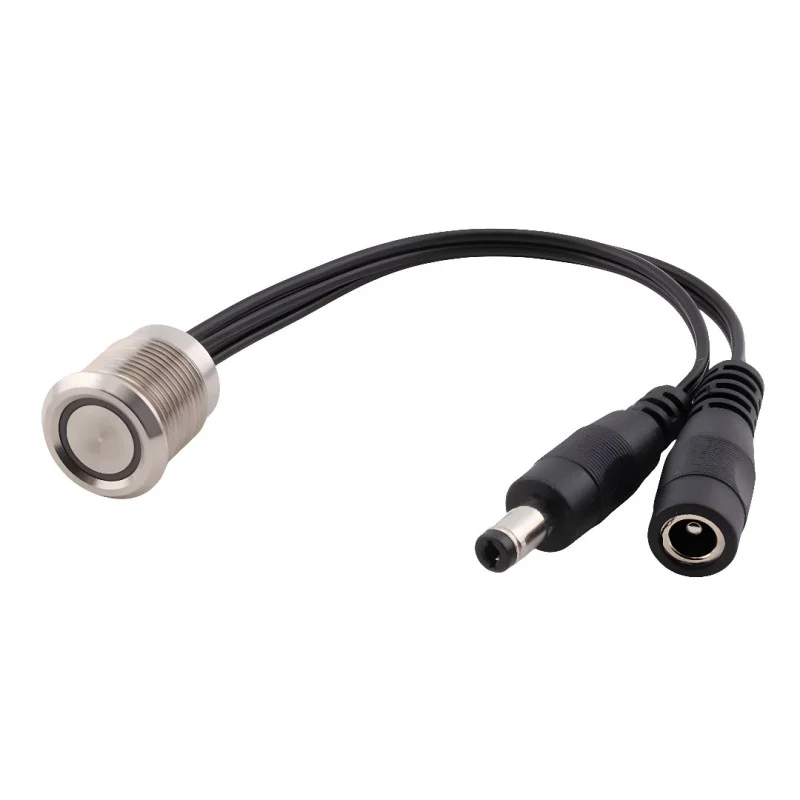

The DIM-1 touch LED dimmer is an elegant and very practical solution for controlling and smoothly dimming LED strips and LED lamps powered by 12 V or 24 V DC. A short touch turns the light on or off, a longer hold continuously adjusts the brightness in the range of 5100%. Thanks to the metal front button with a backlit ring, it is ideal for furniture, shelves, kitchen cabinets and modern interiors.
Technical specifications
Model: DIM-1
Device type: Touch LED dimmer
Supply voltage: DC 12-24 V
Maximum output current: 6 A
Maximum power: 72 W at 12 V / 144 W at 24 V
Number of channels: 1
Control type: PWM
Control: Capacitive touch
Backlight: blue
Function: short touch ON/OFF, long touch dimming
Connectors: DC jack 5.5 × 2.1 mm (input/output)
Mounting hole diameter: 16 mm
Front button diameter: 17.8 mm
Cable length: 185 mm
Body material: Metal + ABS
Degree of protection: IP20
Weight: 25g
Functions and features
Intuitive touch control without mechanical buttons
Continuous dimming of LED strips in the range of 5100%
Turn on and off with one short touch
Illuminated button ring for easy orientation in the dark
Memory of last brightness level
Compact dimensions suitable for flush mounting
No programming required, ready to use immediately
Ideal for
LED strips in kitchen units
Shelves and display case lighting
Bedside and nightlights
Furniture and decorative LED installations
Modern interiors with an emphasis on design
Package contents
1× touch LED dimmer DIM-1
Why choose this product?
Elegant metal design with illuminated ring
High load capacity up to 6 A
Support for 12 V and 24 V LED systems
Easy installation with DC connectors
Comfortable and quiet operation without mechanical wear
