Descrizione

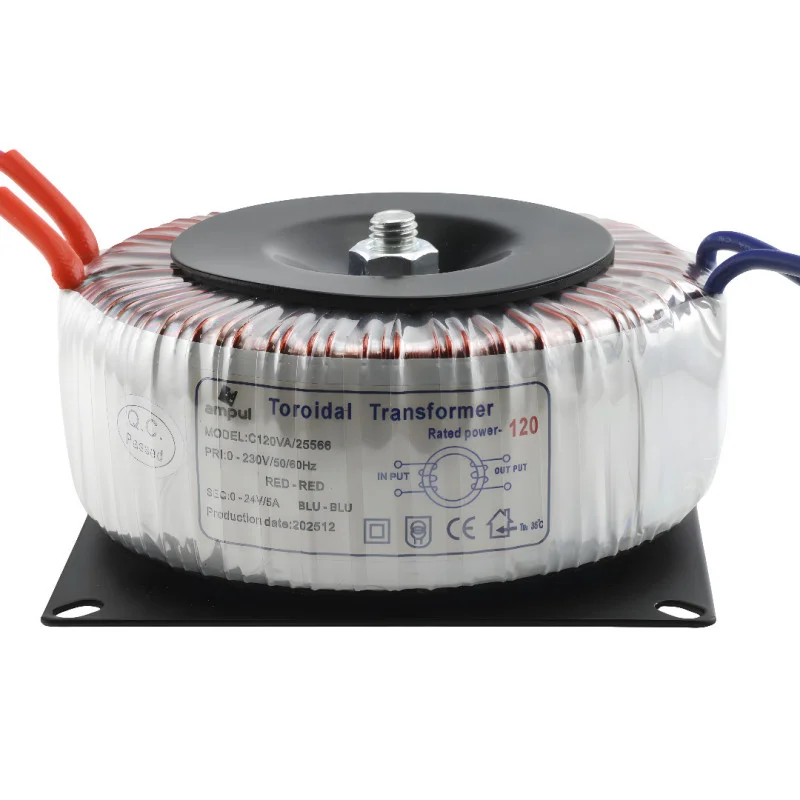

The powerful toroidal transformer with an output voltage of 24 V AC and a current of 5 A is designed for reliable power supply of devices with higher consumption. Thanks to the toroidal design, it achieves high efficiency, low losses and minimal electromagnetic interference. The robust design enables long-term operation in industrial and technical applications.
Technical specifications
Power: 120VA
Input voltage (primary voltage): 230 V AC
Input frequency: 50 / 60 Hz
Output voltage (secondary voltage): 24 V AC
Output current (max. secondary voltage current): 5 A
Construction: toroidal transformer
Protection class: IP00
Dimensions: 100×100×50mm
Mounting hole spacing on sheet metal base: 90x90mm
Weight: 1,800g
Functions and features
Toroidal core with high efficiency and low losses
Very low electromagnetic interference compared to classic EI transformers
Quiet operation without vibrations and mechanical hum
Color-coded wires for easy wiring
Galvanic separation of primary and secondary windings
Suitable for continuous operation
Ideal for
Power supply for control and automation systems
Power relay and switching modules
Power supplies and stabilized power circuits
Industrial applications with higher current consumption
Audio amplifiers and power electronics
Package contents
Toroidal transformer 24 V AC / 5 A
Why choose this product?
High power of 120 VA in compact dimensions
Stable output voltage even under full load
Long service life and high operational reliability
Easy installation in cabinets and devices
Suitable for professional and technical use
