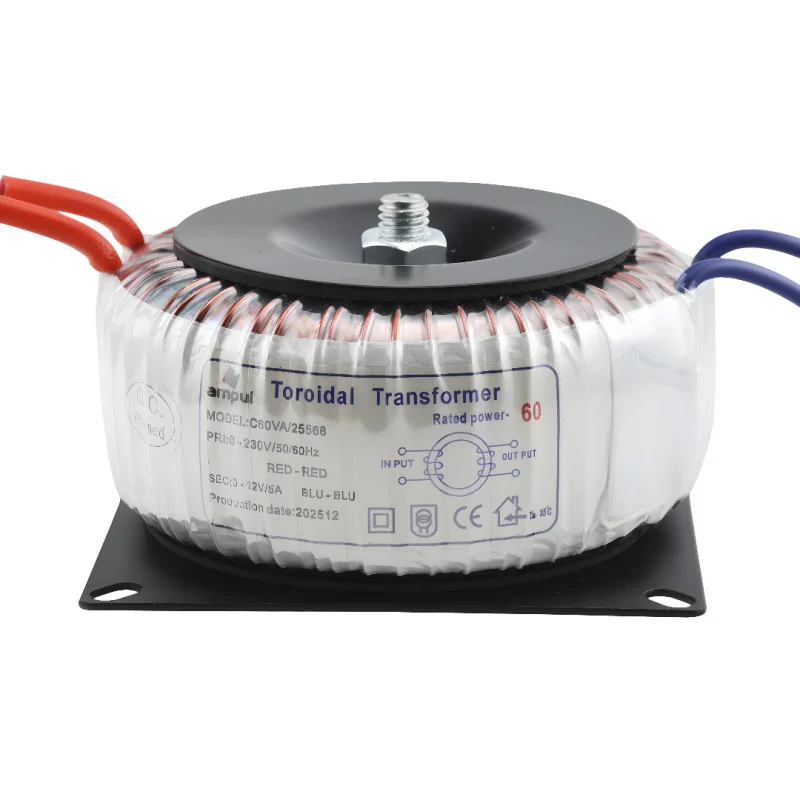

The toroidal transformer with an output voltage of 12 V AC and a current of 5 A is designed to power devices with higher current consumption. Thanks to the toroidal design, it offers high efficiency, low losses and minimal electromagnetic interference. Stable operation and compact design make it suitable for industrial applications, control systems and technical projects.
Technical specifications
Power: 60VA
Input voltage (primary voltage): 230 V AC
Input frequency: 50 / 60 Hz
Output voltage (secondary voltage): 12 V AC
Output current (max. secondary voltage current): 5 A
Construction: toroidal transformer
Protection class: IP00
Dimensions: 90×90×50mm
Mounting hole spacing on sheet metal base: 80x80mm
Weight: 1250g
Functions and features
Toroidal core with high efficiency and low losses
Very low electromagnetic interference
Quiet operation without vibrations and mechanical hum
Color-coded lead wires for easy wiring
Galvanic separation of primary and secondary windings
Suitable for long-term and continuous operation
Ideal for
Power supply for control and automation systems
Relay and power switching circuits
LED power circuits and auxiliary sources
Audio equipment and power amplifiers
Industrial and technical applications
Package contents
Toroidal transformer 12 V AC / 5 A
Why choose this product?
High power of 60 VA in compact dimensions
Stable output voltage even under full load
Long service life and high operational reliability
Easy installation in devices and cabinets
Suitable for professional and technical use
