Descrizione

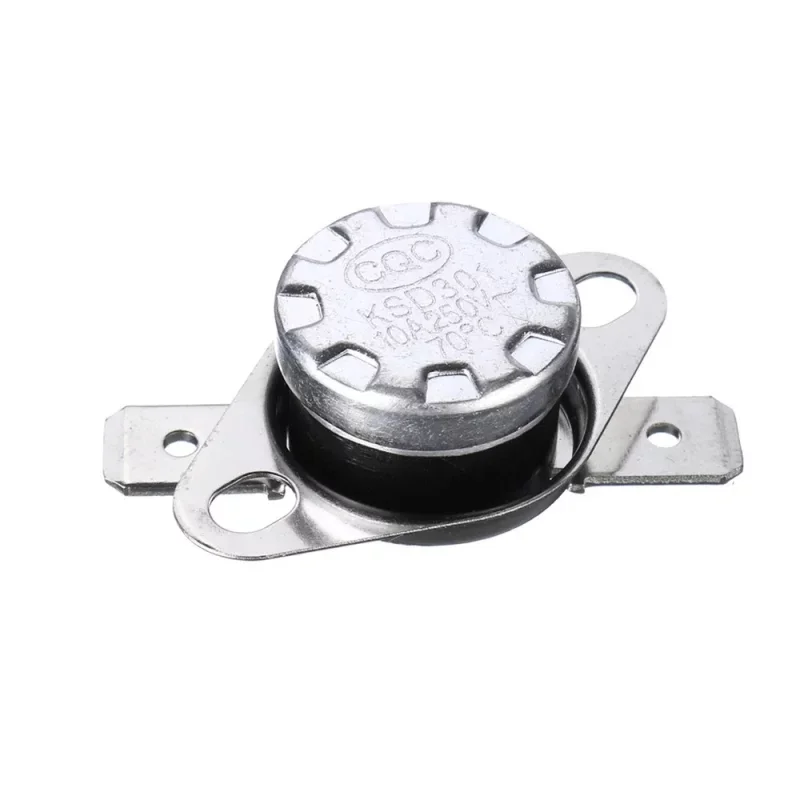

Fully encapsulated thermostat in industrial quality. Opens after reaching prescribed (action) temperature. At lower temperature the thermostat is closed.
Circuit: NC (normal closed)
Automatic reset
Operating voltage: max. 250V AC
Current: max. 10A
Current: 110V AC / 15A; 24V DC / 20A; 12V DC /30A
Circuit resistance: 50 mOhm
Insulation resistance: 100 MOhm
Base material: bakelite
Terminal orientation: F (0°)
Size: 33x12mm
Weight: 20g
Price for 1 piece
|
Operating |
Resetting |
||
| 25 ±5°C | 10 ±5°C | 105 ±5°C | 85±10°C |
| 30±5°C | 15±5°C | 110 ±5°C | 90±10°C |
| 35±5°C | 20±5°C | 115 ±5°C | 95±10°C |
| 40±5°C | 25±5°C | 120 ±5°C | 100±10°C |
| 45±5°C | 30±5°C | 125 ±5°C | 105±10°C |
| 50±5°C | 35±5°C | 130 ±5°C | 110±10°C |
| 55±5°C | 40±5°C | 135 ±5°C | 115±10°C |
| 60±5°C | 45±5°C | 140 ±5°C | 120±10°C |
| 65±5°C | 50±5°C | 145 ±5°C | 125±10°C |
| 70±5°C | 55±5°C | 150 ±5°C | 130±10°C |
| 75±5°C | 60±5°C | 155 ±5°C | 135±10°C |
| 80±5°C | 65±5°C | 160 ±5°C | 140±10°C |
| 85±5°C | 70±5°C | 165 ±5°C | 145±10°C |
| 90±5°C | 75±5°C | 170 ±5°C | 145±10°C |
| 95 ±5°C | 80±5°C | 175 ±5°C | 150±10°C |
| 100 ±5°C | 80±10°C | 180 ±5°C | 155±10°C |
