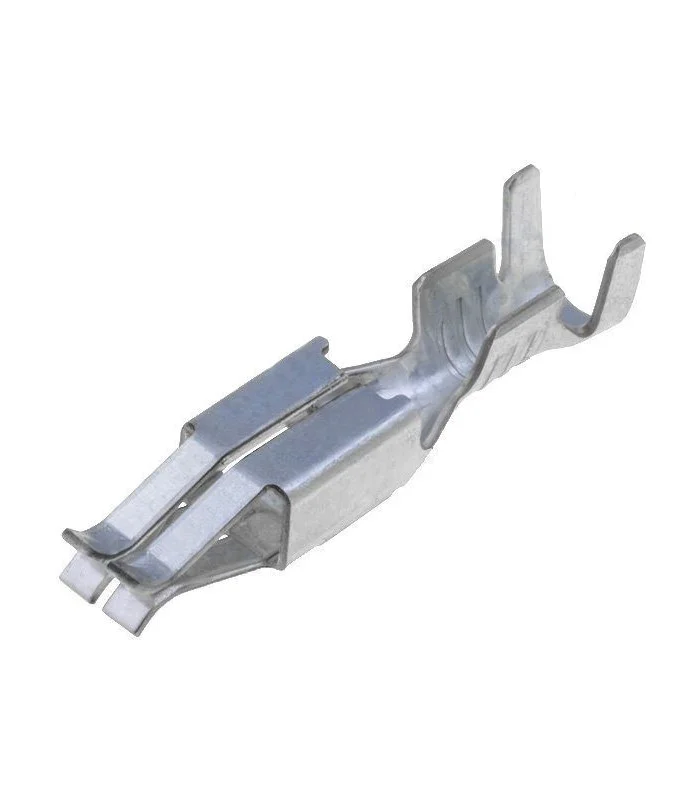

Contact Type: Socket
Contact Design: Standard Flat
Contact Base Material: CuSn4
Contact Plating, Mating Area, Material: Pre-Tin
Configuration: Features
GET 0.64 Connector System: No
Single Wire Sealing System: No
Operating Temperature (°C [°F]): -40 – +110 [-40 – +230]
Applies To: Wire/Cable
Accepts Wire Insulation Diameter, Range (mm [in]): 2.40 – 3.70 [0.094 – 0.1456]
Application Use: Wire-to-Wire
Contact Transmits (Typical Application): Power
