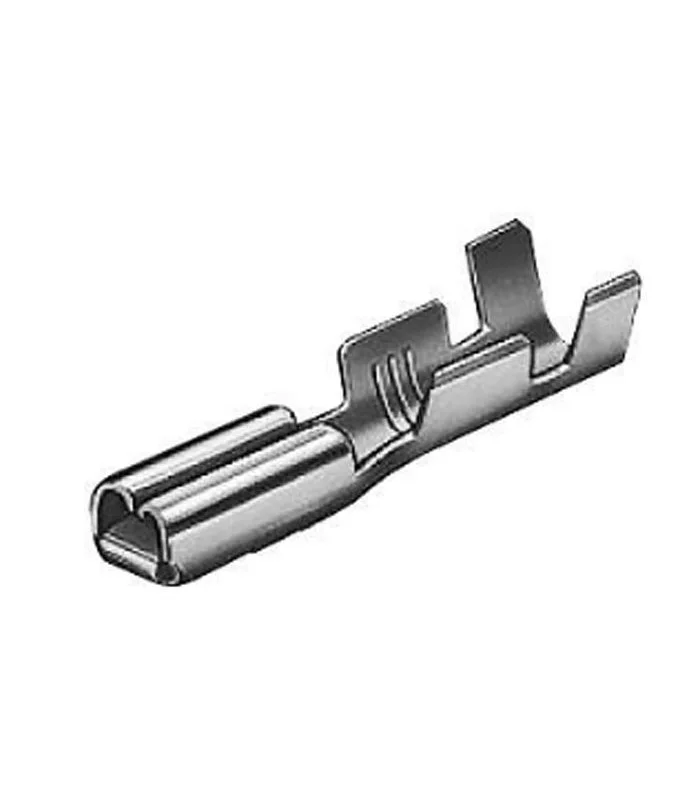

Descrizione
Sealed/Unsealed: unsealed
Male/Female: F
Tab Size: 2.3mm(090)
Mating parts: 8230-4282(MT series/DS series/HD series/HM series)
Applicable wire size: 0.5-1.25mm2
Cable overall diameter (mm): 1.6-2.5
Materials: Brass
Surface treatment: Tin-plated
Thickness (mm): 0.25
Contact resistance: Initial 3mO Max. After durability tests 10mO Max.
Leak current: 3mA Max.
Insulation resistance: 100MO Min.
