Descrizione
Series: EH
For Use With: EH series Housing

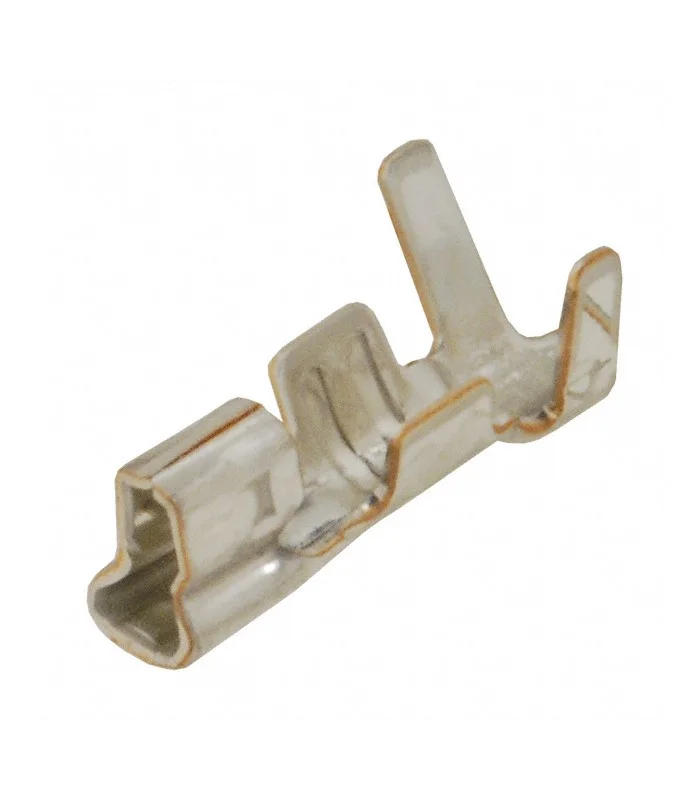

Contact Gender: Socket
Contact Material: Phosphor Bronze
Contact Plating: Tin
Contact Termination Type: Crimp
Wire Size AWG Min: 22AWG
Wire Size AWG Max: 30AWG
SVHC: No SVHC (16-Jun-2014)
Cable Diameter Max: 1.9mm
Cable Diameter Min: 1.0mm
Contact Resistance: 10mohm
Contact Termination: Crimp
Current Rating: 3A
Operating Temperature Max: 85°C
Operating Temperature Min: -25°C
Wire Area Size Max: 0.33mm²
Wire Area Size Min: 0.05mm²
Working Voltage: 250V
