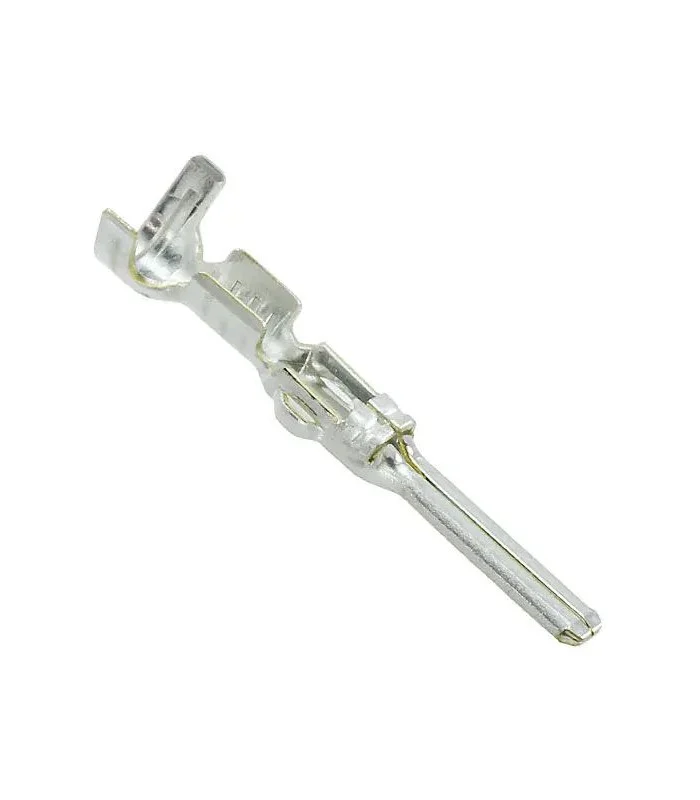

Terminale Econoseal J MK II Maschio per Cavo sez. 0.20-0.50mmq-Spedizione veloce

Descrizione

Product Type Features
– Sealable: Yes
– Primary Locking Feature: Clean Body
– Wire Type: Copper
Body Features
– Seal Type: Single Wire Seal (SWS)
Contact Features
– Crimp Type: F-Crimp
– Typical Current Rating (A): 6
– Terminal & Splice Type: Tab
– Mating Tab Width: 1.8 mm [ .071 in ]
– Mating Tab Thickness: .64 mm [ .025 in ]
– Interface Plating: Gold (Au)
– Contact Termination Area Plating Material: Tin (Sn)
Termination Features
– Termination Method: Crimp
Dimensions
– Wire Size (mm²): .2 .5
– Wire Size (AWG): 24 – 20
– Wire Insulation Diameter: 1.5 2.2 mm [ .055 .094 in ]
Usage Conditions
– Operating Temperature Range: -30 105 °C [ -22 221 °F ]
Other
– Terminal Transmits: 0 24 A (Low Power)
