Descrizione

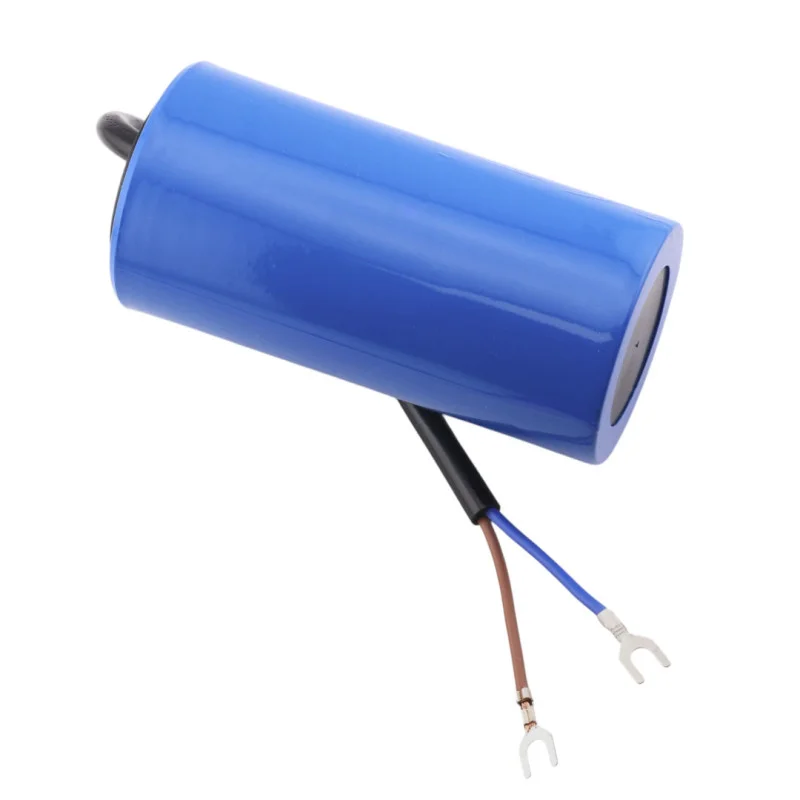

The CD60 type starting capacitor is designed for starting single-phase AC motors. It is used as a short-term loaded capacitor to create a phase shift and increase the starting torque, typically in compressors, pumps and fans. The design in a plastic housing with terminals allows for easy connection to the starting circuit.
Technical specifications
Type: CD60 (starting capacitor)
Capacitance: 150 µF
Rated voltage: 450 V AC
Frequency: 50/60Hz
Construction: electrolytic capacitor in plastic case
Connection: wires with molded fork connectors
Functions and features
Designed for short-term starting operation in the engine starting circuit
Creates phase shift for auxiliary winding and supports higher starting torque
Suitable for use with a starter relay or centrifugal switch
Plastic case for basic mechanical protection
Ideal for
Single-phase asynchronous motors with starting capacitor
Compressors and refrigeration technology
Pumps, fans and smaller machines with starting circuit
Service replacement of starting capacitors in motor applications
Package contents
1 pc of starting capacitor CD60 150 µF 450 V AC
Why choose this product?
Clearly defined electrical parameters for starting applications (150 µF, 450 V AC)
CD60 version designed for engine starting
Practical connection using wires with connectors for quick assembly
Installation and operating instructions
Before replacing, verify the required capacity and voltage rating according to the device label and wiring diagram.
Use the CD60 start capacitor only in a starting circuit with disconnection after starting (relay/switch)
Always safely discharge the capacitor using the appropriate procedure before handling.
Safety notice
The product is intended for mains voltage circuits and can operate with dangerous voltages of 230 V AC and higher.
Perform installation only with the power supply disconnected and in compliance with the principles of working on electrical equipment.
Do not use as a permanently connected run capacitor unless the application specifically requires it.
