Descrizione

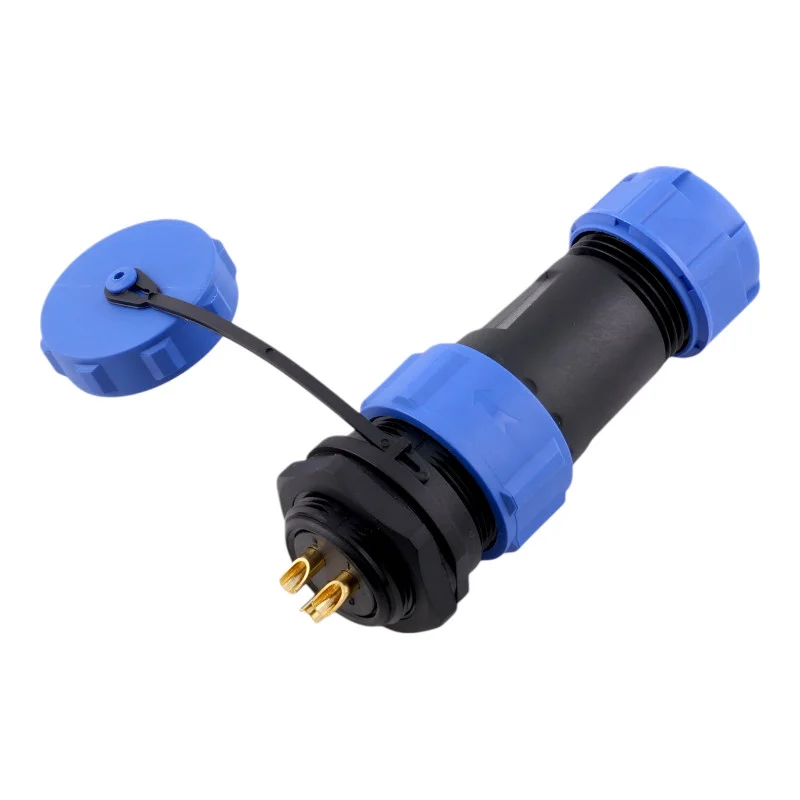

Waterproof docking connector for wires with a diameter of 6 – 12mm. Gold-plated contacts.
| Rated current | 30A | 30A | 30A | 30A | 15A | 15A | 5A | 5A |
| Contact diameter | 3mm | 3mm | 3mm | 3mm | 2mm | 2mm | 1mm | 1mm |
| Maximum voltage | 500v | 500v | 500v | 500v | 500v | 500v | 500v | 400v |
| Contact resistance M | 1 | 1 | 1 | 1 | 2.5 | 2.5 | 5 | 5 |
| Wire cross-section mm 2 /AWG | 4.17/11 | 4.17/11 | 4.17/11 | 4.17/11 | 2/14 | 2/14 | 0.785/18 | 0.785/18 |
