SP1710/SP1712 panel mount, IP68 waterproof cable connector (Old Package)-Spedizione veloce

Name: SP1710/SP1712 panel mount, IP68 waterproof cable connector (Old Package)-Spedizione veloce
SKU: 237515
Availability: InStock

Il prezzo originale era: €5.62.Il prezzo attuale è: €1.68.

COD: 237515 Categoria: Components

Descrizione

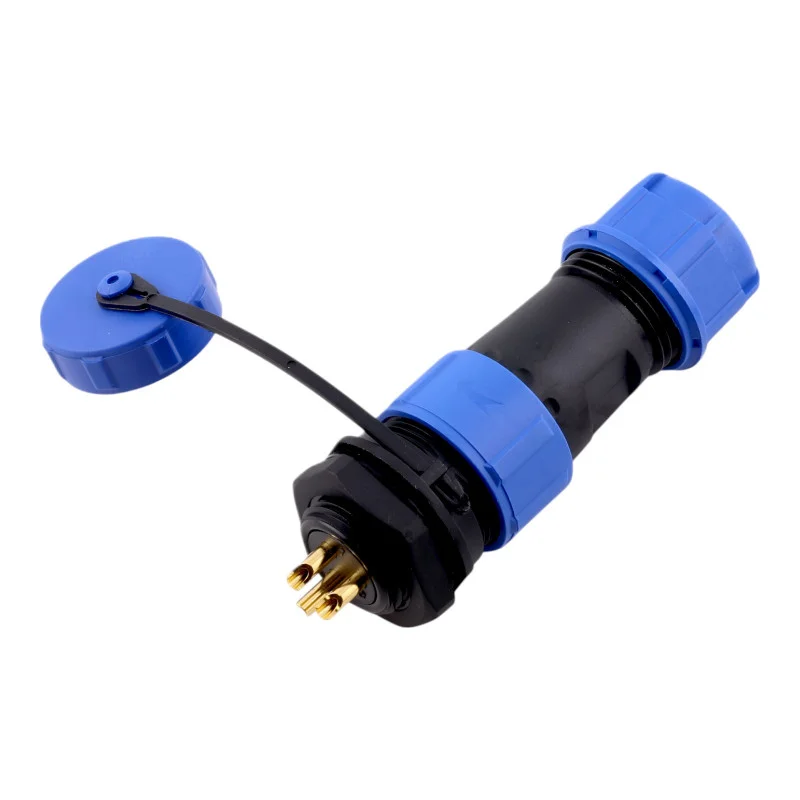

Waterproof docking connector for wires with a diameter of 5 – 10mm. Gold-plated contacts.

Type: SP1710/SP1712 2-pin 3-pin 4-pin 5-pin 7-pin 9-pin

Contact diameter	1.5mm	1.5mm	1mm	1mm	1mm	1mm
Maximum current	10A	10A	10A	10A	10A	10A
Maximum voltage	500V	500V	500V	500V	400V	400V
Contact resistance	2.5m	2.5m	5m	5m	5m	5m
Max. conductor cross-section	2mm ²	2mm ²	0.785mm ²	0.785mm ²	0.785mm ²	0.785mm ²
