Descrizione

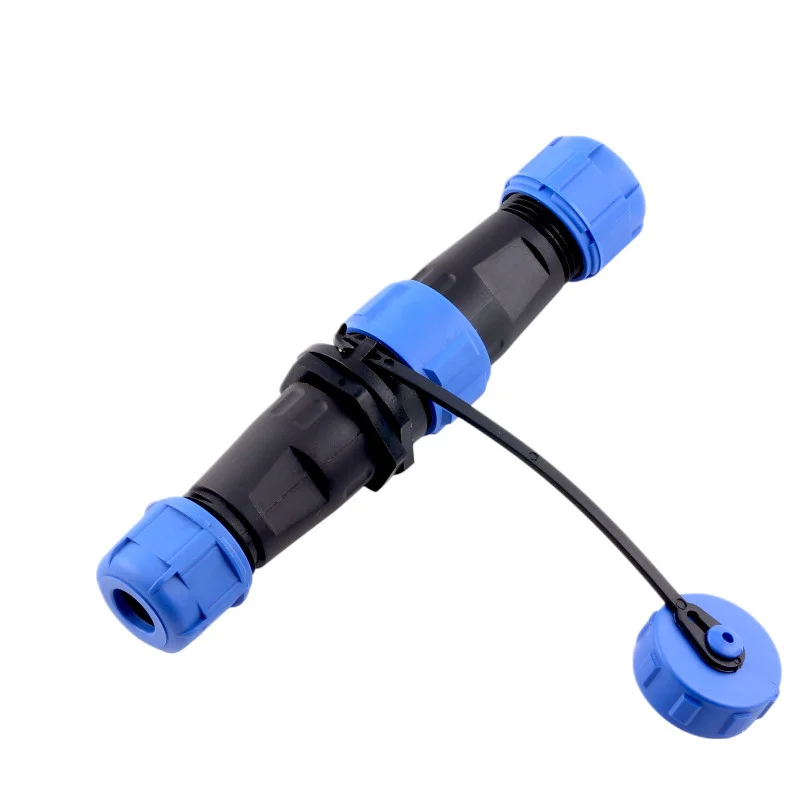

Waterproof docking connector for wires with a diameter of 3 – 6.5 mm. Gold plated contacts.
| Type: SP1310/SP1311 | 2-pin | 3-pin | 4-pin | 5-pin | 6-pin | 7-pin | 9-pin |
| Average contacts | 1.6mm | 1.6mm | 1 mm | 1 mm | 1 mm | 1 mm | 0.7mm |
| Maximum current | 13A | 13A | 5A | 5A | 5A | 5A | 3A |
| Maximum voltage | 250V | 250V | 250V | 250V | 125V | 125V | 125V |
| Contact resistance | 2m | 2m | 5m | 5m | 5m | 5m | 5m |
| Max. conductor cross-section | 1.5mm 2 | 1.5mm 2 | 0.5mm 2 | 0.5mm 2 | 0.5mm 2 | 0.5mm 2 | 0.35mm 2 |
Protection: IP68
Working temperature: -35 – 110°C
Relative humidity: 90% – 95%
Material: Polyamide
Package contents: 1x cable socket (female), 1x cable connector (male)
