Descrizione

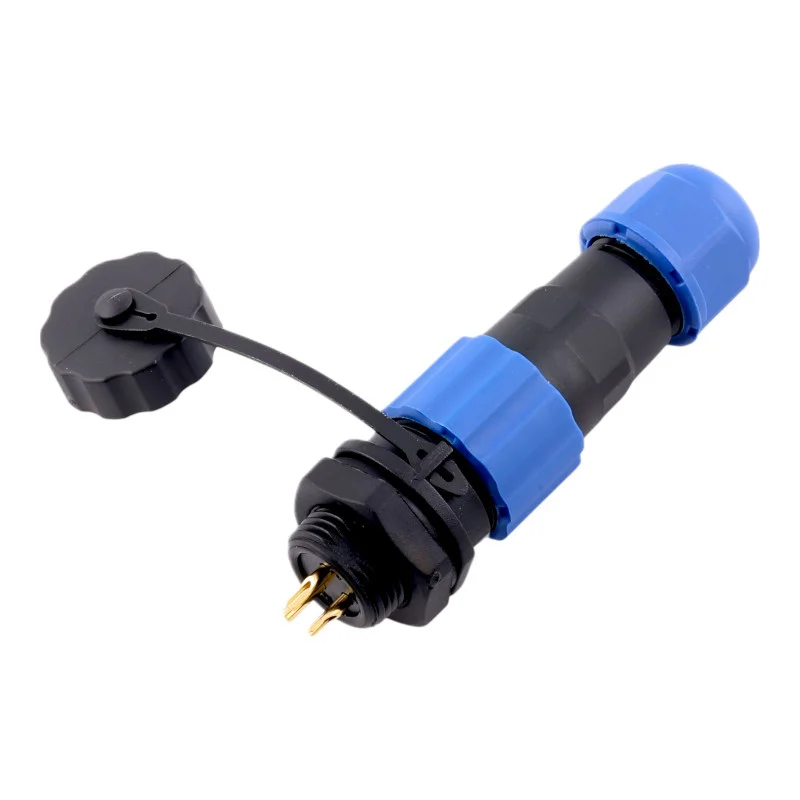

Vodeodolný panelový konektor pre vodiče s priemerom 4 – 6.5mm. Pozlátené kontakty.
| Typ: SP13 | 1-pin | 2-pin | 3-pin | 4-pin | 5-pin | 6-pin | 7-pin |
| Priemer kontaktov | 2.8mm | 1.8mm | 1mm | 1mm | 1mm | 1mm | 1mm |
| Maximálny prúd | 10A | 10A | 5A | 5A | 5A | 5A | 5A |
| Maximálne napätie | 250V | 250V | 250V | 250V | 250V | 250V | 250V |
| Odpor kontaktov | 2m | 2m | 5m | 5m | 5m | 5m | 5m |
| Max. prierez vodiča | 6.15mm 2 | 2.54mm 2 | 2mm 2 | 0.785mm 2 | 0.785mm 2 | 0.785mm 2 | 0.785mm 2 |
Krytie: IP68
Pracovná teplota: -20 – 110 °C
Relatívna vlhkosť: 90% – 95%
Materiál: Polyamid
