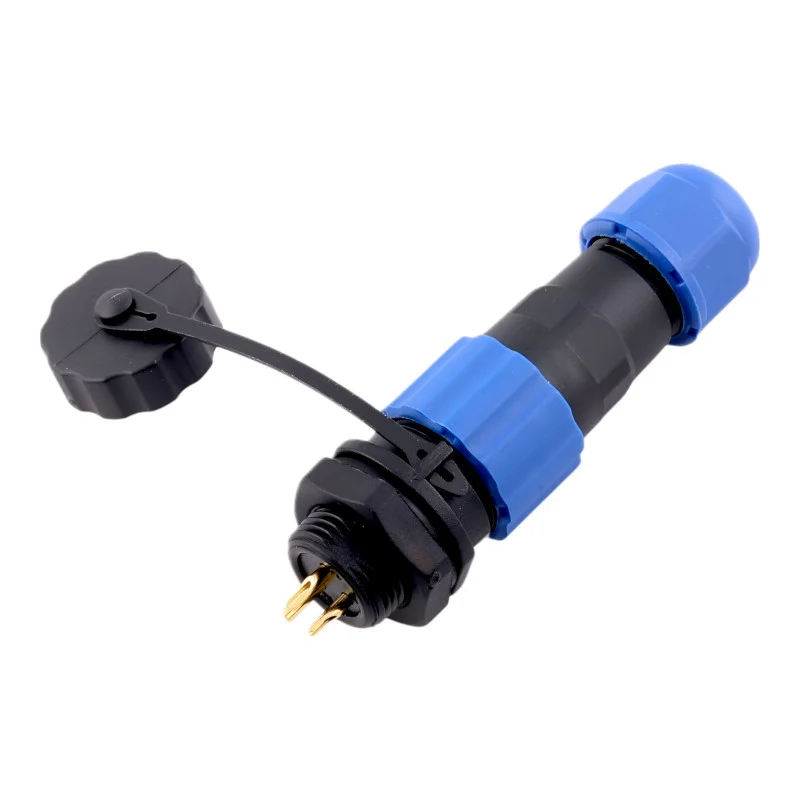

Waterproof panel connector for conductors with a diameter of 4 – 6.5mm. Gold plated contacts.
| Type: SP13 | 1-pin | 2-pin | 3-pin | 4-pin | 5-pin | 6-pin | 7-pin |
| Diameter of contacts | 2.8mm | 1.8mm | 1mm | 1mm | 1mm | 1mm | 1mm |
| Maximum current | 10A | 10A | 5A | 5A | 5A | 5A | 5A |
| Maximum voltage | 250V | 250V | 250V | 250V | 250V | 250V | 250V |
| Contact resistance | 2m | 2m | 5m | 5m | 5m | 5m | 5m |
| Max. conductor cross-section | 6.15mm2 | 2.54mm2 | 2mm2 | 0.785mm2 | 0.785mm2 | 0.785mm2 | 0.785mm2 |
Protection: IP68
Operating temperature: -20 – 110°C
Relative humidity: 90% – 95%
Material: Polyamide
