Key Features
Wide Voltage Compatibility: Supports batteries from 2.4V to 12.0V (500 mA 800 mA), ideal for most RC cars, boats, planes, or helicopters.
Diverse Connectors: Six types of connectors standard Tamiya, mini Tamiya, JST, SM 2P, Barrel Plug, and HuanQi ensure seamless connection to most model batteries.
Smart Charging Technology: Automatic current regulation and charge termination upon capacity reach, minimizing overcharging risk and extending cell lifespan.
Safety First:
Explicit prohibition on charging LiPo/Li-ion/LiFePO: Charger is intended only for NiMH and NiCd cells clear labeling and warnings on the device help prevent accidents.
Temperature Range: Operating temperature 0°C to 40°C; storage range 20°C to +85°C.
Compact and Durable Design: Dimensions only 78 × 45 × 27 mm, ideal for backpack and workshop.
This charger is the perfect accessory for any RC enthusiast seeking a blend of safety, performance, and practicality. Keep your batteries in perfect condition and always ready for your next modeling adventure!
Technical Specifications
Input Voltage: 220-265 V AC
Output Voltage: 2.412 V
Output Current: 500800 mA
Compatible Batteries: NiMH, NiCd (2.4 V12.0 V) batteries with nominal voltages: 2.4V, 3.6V, 4.8V, 6V, 7.2V, 8.4V, 9.6V, 12V
The charger outputs voltage corresponding to these nominal values and adjusts the current 500800 mA to match the capacity and number of cells in the battery pack. For instance, if you have a 7.2V battery (6 NiMH cells), the charger recognizes it and charges it at the selected current level (500800 mA) until fully charged.
Connectors: Tamiya, mini Tamiya, JST, SM 2P, Barrel, HuanQi
Cable Length: 150 cm
Operating Temperature: 0°C to 40°C
Storage Temperature: 20°C to +85°C
Dimensions: (L × W × H) 75 × 38 × 29 mm

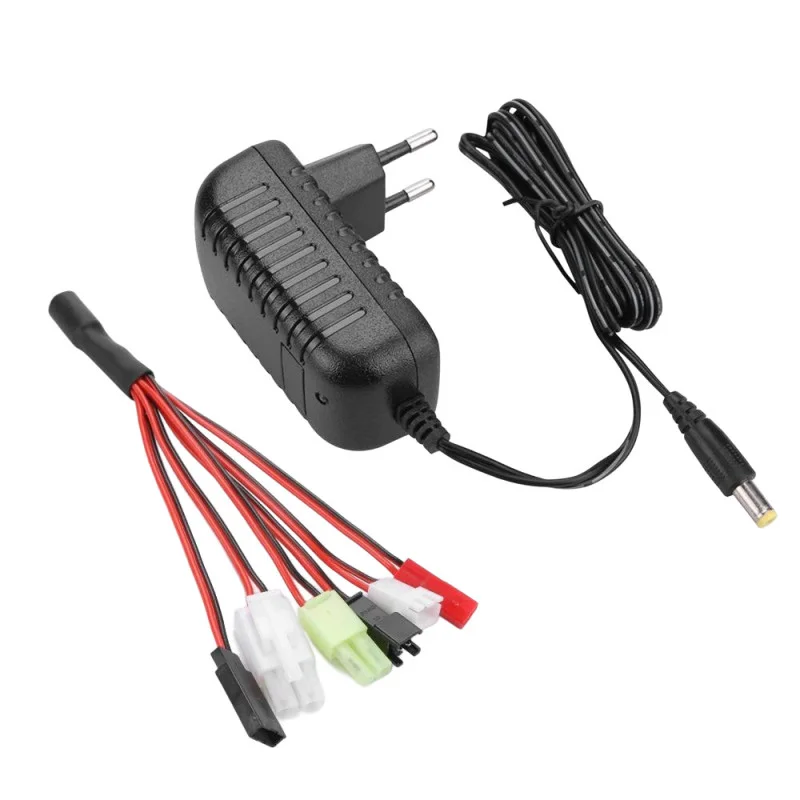

Package Contents
Smart NiMH/NiCd Charger
DC Adapter with Six Tips
User Manual (EN, DE, FR, IT, ES) Czech manual in product description)
Safety Warnings
NEVER charge LiPo, Li-ion, or LiFePO batteries.
If the battery label contains markings like LiPo, Li-Polymer, Lithium-Ion, etc., charging is dangerous and SHOULD NOT be done.
Improper use can lead to fire or injury!
