Silent+ Mini Orange Air Conditioning Condensate Drain Pump – Aspen Pumps
Description:
The world’s #1 Orange mini pump is now better than ever. Thanks to our proven 5th generation technology, the Silent+ Mini Orange pump boasts sound levels as low as 16dB(A)*. So quiet, it eliminates the need for additional noise or vibration dampeners. Thanks to capacity sensor technology, it provides intelligent and adaptable flows. Quietly brilliant.
Features:
Proven 5th generation technology: Diaphragm capacitance sensing and rotation = Silence and Power
Low maintenance
Plug & Play cable**
Max. flow rate: Max. flow 35 L/h
Max. recommended head: Max. head 10 m
Noise: Up to 16 dB(A)*
Specifications:
Maximum flow rate: 35 L/h @ 0 m head
Maximum delivery height: 10 m
Maximum suction height: 1.5 m
dB(A): 16 dB(A)*
Power supply: 100-250 VAC, 0.18 A, 2.4 W, 50/60 Hz
Power: Continuous
Class: II
Maximum consumption: 40 kW (136,000 Btu/h)
Max. temp. Water temperature: 40°C (104°F)
Inlets: Ø16mm (5/8″)
Outlets: Ø6mm (1/4″)
IP rating: IP24
Safety switch: 5.0 A Normally closed
Self-priming:
Packaging:

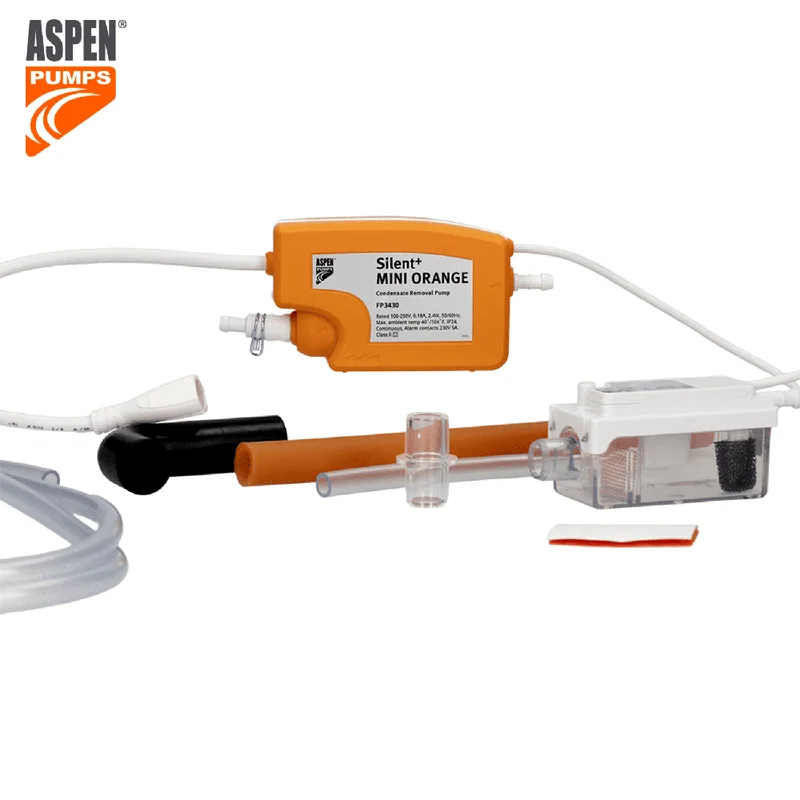

5th generation Silent+ Mini Orange pump
Tank (filter and lid included)
1.5 m Plug & Play cable**
1.5 m transparent PVC hose
150 mm transparent vent hose
220 mm orange inlet hose
Drain connector kit: straight connector and rubber elbow
Quick start guide
Product code: FP3430
