Descrizione

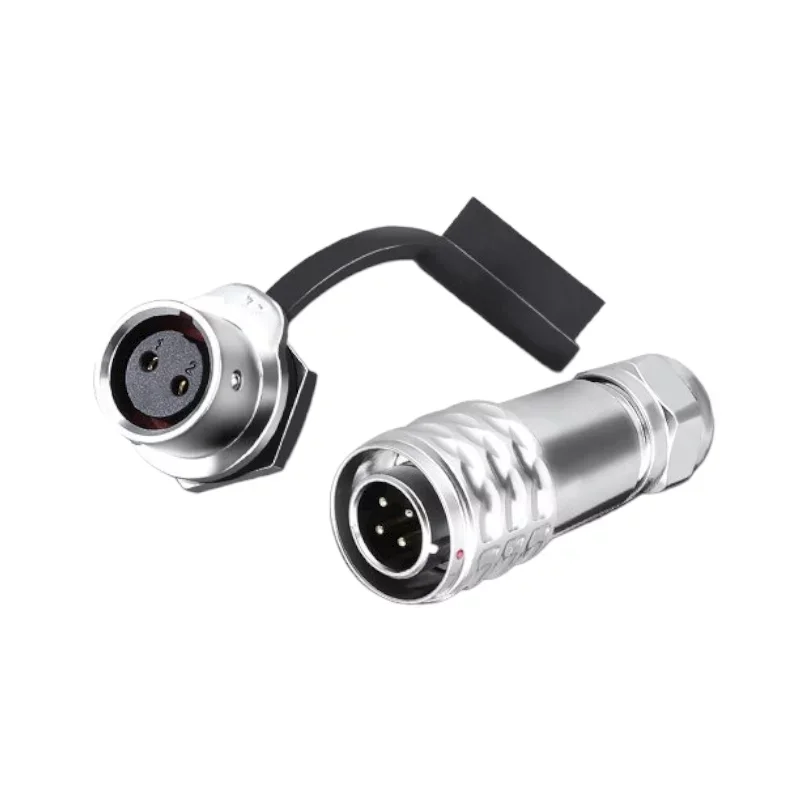

Waterproof docking connector for wires with a diameter of 4 – 6.5 mm. Bayonet design. Gold plated contacts.
Mounting hole diameter: 12mm
Protection: IP67
Insulation resistance: 2000 m
Working temperature: -25 – 85°C
Relative humidity: 90% – 95%
Material: Metal (brass with nickel plating)
Insert material: PPS (max. 260°C)
The package contains both a male and a female
Weight: 49g
| Type: SF16 | 2-pin | 3-pin | 4-pin | 5-pin | 6-pin | 7-pin | 9-pin |
| Average contacts | 1.6mm | 1.6mm | 1 mm | 1 mm | 1 mm | 1 mm | 0.8mm |
| Max. current | 13A | 13A | 5A | 5A | 5A | 5A | 3A |
| Max. Tension | 250V | 250V | 200V | 180V | 125V | 125V | 125V |
| Max. cable cross-section | 2mm 2 | 2mm 2 | 0.75mm 2 | 0.75mm 2 | 0.75mm 2 | 0.75mm 2 | 0.75mm 2 |
