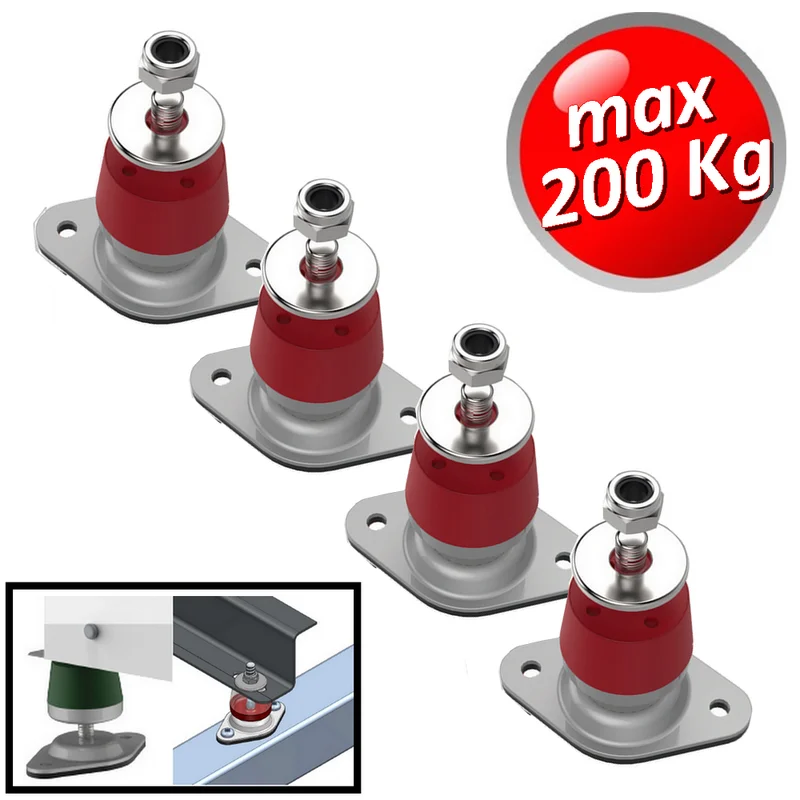

SE-CRR-50.4 – ADJUSTABLE BASE ANTI-VIBRATION MOUNT IN MEGOL
Max capacity 200 Kg. Red color – 4 pieces
Features:
Next-generation damper for supporting base-mounted outdoor units, with a single 8 mm threaded outlet, the corresponding nut to secure the unit, and a height adjustment system (‘CFR’) that makes it unique.
The ability to adjust the height allows for even distribution of the machines weight, preventing uneven loading due to ground imperfections.
Its special megol composition offers top-level vibration damping and increased resistance to aging and cracking due to micro-fractures.
Ideal for machines operating from 1250 rpm.
Application field:
Designed to support and eliminate acoustic and vibro-mechanical pollution from the machines self-supporting structure, ensuring performance and safety.
Intended for use in domestic or semi-industrial air conditioning units such as: chillers, fans, hoods, condensers, etc.
Resonance frequency: 715 Hz.
Available in 4 hardness levels according to performance and applied load.
Anti-vibration height: 80 mm
Load capacities:
Grey color: loads between 4 – 12 Kg per piece;
Green color: loads between 9 – 24 Kg per piece;
Blue color: loads between 15 – 35 Kg per piece;
Red color: loads between 30 – 50 Kg per piece.
Product code: SE-CRR-50.4
