Descrizione

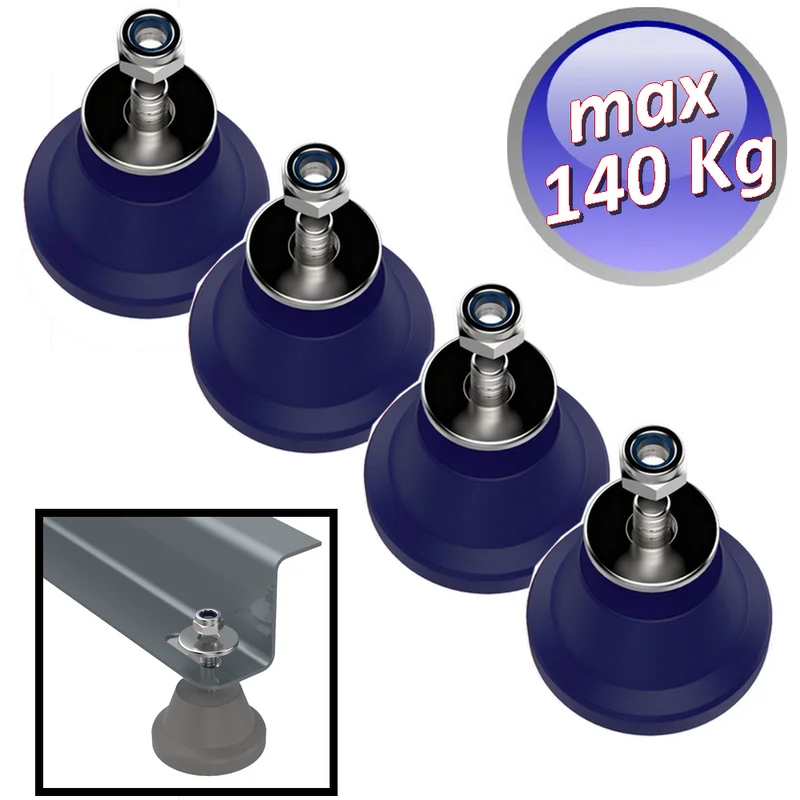

SE-CA-30 – ANTI-VIBRATION FLOOR MOUNT IN MEGOL MAX CAPACITY 140 Kg. BLUE COLOR – 4 PIECES
Features:
Next-generation damper for supporting base-mounted outdoor units, with a single 8 mm threaded outlet and the corresponding nut to secure the unit.
Its special megol composition offers excellent vibration damping and increased resistance to aging and cracking from micro-fractures.
Ideal for machines operating from 1250 rpm.
Application field:
Designed to support and eliminate acoustic and vibro-mechanical pollution from the self-supporting structure of the machine, ensuring performance and safety.
Intended for use in domestic or semi-industrial air conditioning units such as: chillers, fans, hoods, condensers, etc.
Resonance frequency: 715 Hz.
Available in 4 hardness levels according to performance, based on the applied load.
Anti-vibration height: 75 mm
Load capacities:
Grey color: loads between 4 – 12 Kg per piece;
Green color: loads between 9 – 24 Kg per piece;
Blue color: loads between 15 – 35 Kg per piece;
Red color: loads between 30 – 50 Kg per piece.
Product code: SE-CA-30
