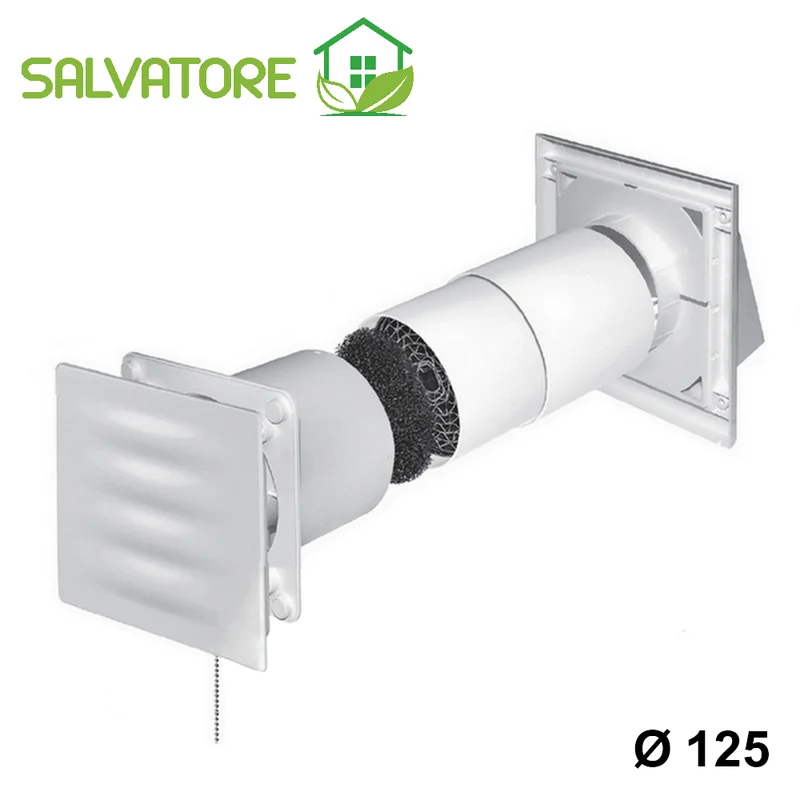

– Controlled Mechanical Ventilation Ø125
Compact Single-Room Heat Recoverer
With Built-In Thermal Exchanger
Maximum Thermal Efficiency during Air Intake: 95%
Description:
The heat recoverer features a thermal exchanger that retains and accumulates heat during the air extraction process from the room. The accumulated heat is released to the new air intake from outside. This solution allows for the introduction of fresh air at almost the same temperature as the room, resulting in significant energy savings. The exchanger is made of aluminum, one of the best metals for thermal exchange, and is completely waterproof and equipped with an air filter for solid and liquid particles.
Usage and Benefits:
The model is designed for use in a single residential environment.
Key advantages of this device include:
An innovative all-aluminum heat accumulator (standard accumulators are ceramic). Aluminum, with its high storage capacity, increases efficiency with faster exchange rates and less time for air flow reversal.
The proliferation of bacteria and/or fungi is significantly lower on an aluminum surface compared to a porous ceramic surface. Aluminum does not absorb moisture, enhancing air quality and ensuring durable exchange even in extreme conditions and in the presence of moisture.
Low power consumption at low ventilation speed: 3W.
Easy installation powered by 220/240v.
Simple use and control.
Provides excellent ventilation with minimal structural intervention.
Easy wall installation without additional ducts.
Typically, a fan is used to extract air from a room, especially during winter, which extracts warm air and increases heating costs. Using reduces heating costs by 1/3.
Ultra-quiet fan.
No need for condensation discharge ducts.
Technical Specifications:
The product complies with EU directives: Low Voltage Directive (LVD) 2006/95/EC, Electromagnetic Compatibility (EMC) 2004/108/EC, EMF directive, ROHS2 Directive 2011/65/EU.
Maximum thermal efficiency during air intake: 95%
Average thermal efficiency during air intake: 40 to 45%
Tube diameter: 125 mm
Telescopic tube adjustable from 260 to 405 mm
Speed adjustment is activated via a pull chain directly connected to the fan body.
Product Code:
