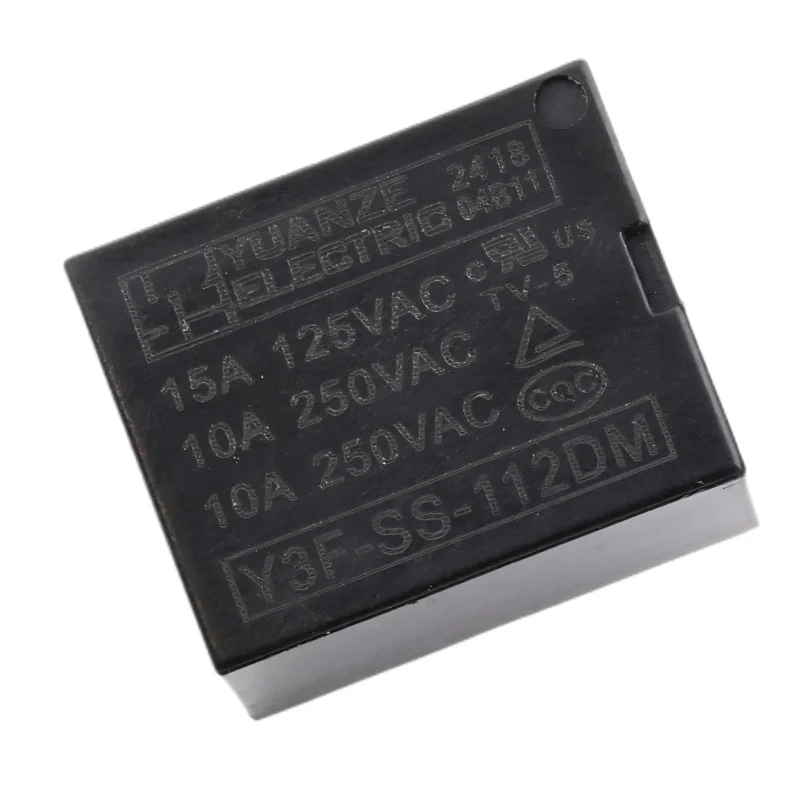

The electromagnetic power relay Y3F-SS-112DM is designed for switching loads using a 12V DC control signal. Thanks to contacts rated up to 10A, it is suitable for general switching applications in electronics and automation, where galvanic isolation between the control part and the switched circuit is required.
Technical specifications
Model: Y3F-SS-112DM
Contact type: SPDT (1 changeover contact)
Coil control voltage: 12V DC
Coil resistance: 400
Coil consumption: 0.36W
Switching voltage: 250V AC
Max. switching current: 10A
Dimensions: 19.6 x 15.4 x 15.5mm
Functions and features
Electromagnetic relay for switching AC and DC loads with galvanic isolation
4-pin design for mounting into a PCB or socket depending on the wiring used
Changeover contact allows selection between normally open and normally closed output
Package contents
1x relay Y3F-SS-112DM
Safety notice
There is a risk of electric shock when switching the mains voltage of 230250V AC; only carry out assembly and connection when the power supply is disconnected.
Maintain sufficient insulation distances on the PCB, proper fusing and dimensioning of wires for current up to 10A.
Use relays within the limits of their rated values; for inductive loads, consider using protective elements (e.g. RC element, varistor, diode) according to the type of load.
