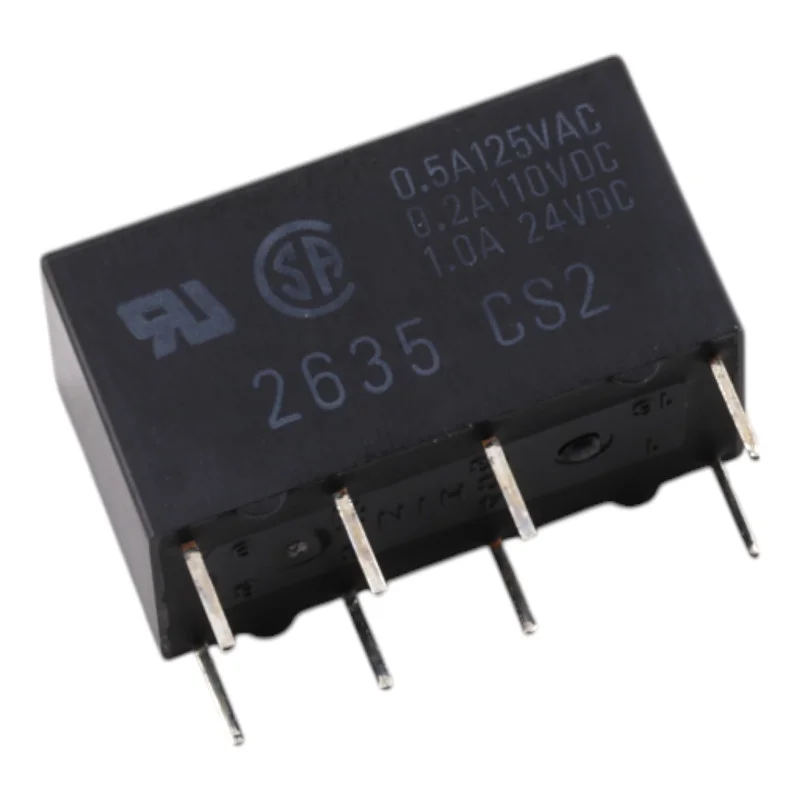

Omron G5V-2-H1 is a miniature signal relay for PCB mounting with a 5 V DC coil in the High-sensitivity version. Thanks to the DPDT (2c) contacts, it is suitable for switching two independent circuits in control, measurement and communication applications where low coil power consumption is required.
Technical specifications
Model: G5V-2-H1
Relay type: signal relay for PCB
Contact arrangement: DPDT (2c)
Coil voltage rating: 5 V DC
Coil rated current: 30 mA
Coil resistance: 166.7
Coil power consumption: approximately 150 mW
Contact material: Ag + Au-alloy
Contact type: bifurcated crossbar
Rated load (resistive load): 0.5 A at 125 VAC; 1 A at 24 VDC
Rated continuous contact current: 2 A
Max. switching voltage: 125 VAC, 125 VDC
Max. switching current: 1 A
Switching time: max. 7 ms
Opening time: max. 3 ms
Contact resistance: max. 100 m
Insulation resistance: min. 1000 M (at 500 VDC)
Dielectric strength (coilcontacts): 1000 VAC, 50/60 Hz for 1 min
Dielectric strength (same polarity contacts): 500 VAC, 50/60 Hz for 1 min
Dielectric strength (contacts of different polarity): 1000 VAC, 50/60 Hz for 1 min
Impulse withstand voltage: 1500 V (10 x 160 µs)
Ambient operating temperature: -25 °C to +70 °C (without icing and condensation)
Operating ambient humidity: 5% to 85%
Weight: approximately 5 g
Functions and features
High-sensitivity version for reduced coil power consumption while maintaining relay functional parameters
DPDT contacts allow simultaneous switching of two circuits
Au alloy contacts for reliable signal switching at low levels
Defined insulation and dielectric parameters for use in control circuits
Ideal for
Control and logic circuits in industrial electronics
Measuring and testing equipment
Communication and signaling modules
Switching of low-voltage DC circuits and resistive AC loads within rated values
Package contents
Relay Omron G5V-2-H1, 5 V DC (High-sensitivity)
Why choose this product?
Verified relay type with defined coil and contact parameters
DPDT design for universal use in signal and control applications
High-sensitivity variant with lower coil power consumption
Contact material Ag + Au-alloy suitable for signal switching
Installation and operating instructions
Observe the nominal coil voltage of 5 V DC and the correct polarity according to the wiring of your board.
For switching inductive loads, use appropriate surge suppression (e.g. diode for DC, RC element/varistor for AC)
Respect the nominal values for resistive loads and verify suitability for the specific switched load under real-world conditions.
Safety notice
There is a risk of electric shock when switching 125 VAC/125 VDC and higher currents; installation should only be performed by a qualified person
Ensure sufficient insulation distances on the PCB and follow safe design principles for working with hazardous voltages
