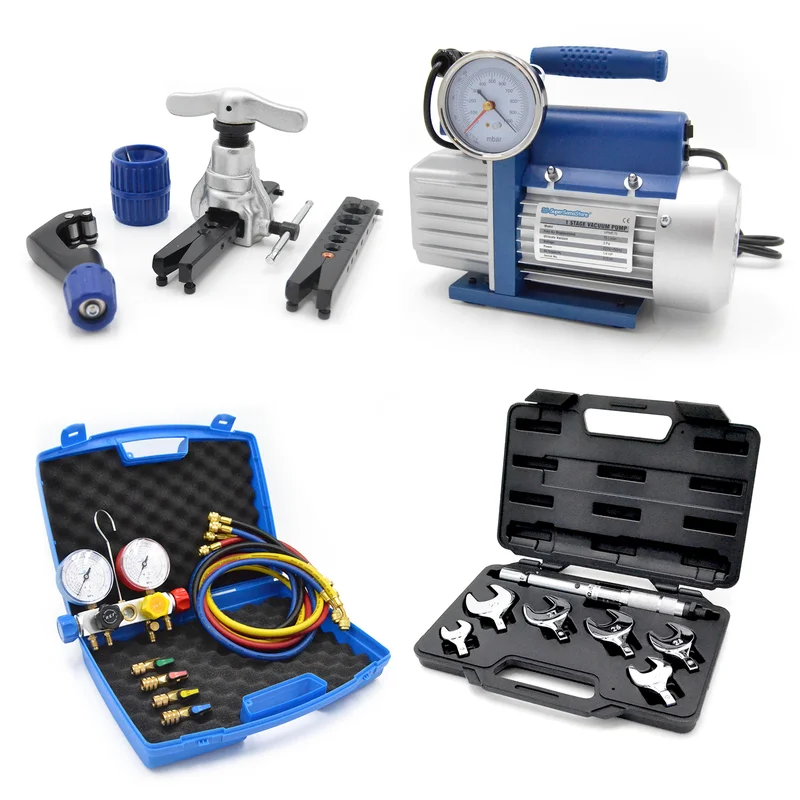

DOUBLE-STAGE 70L VACUUM PUMP
+
4-WAY MANOMETER SET
with scales for R410A – R32 – R407C – R134A
+
FLARING TOOL
with reamer and tube cutter
+
TORQUE WRENCH
FEATURES:
VACUUM PUMP:
Instructions in Italian
Double-stage model with 70 liters per minute capacity
Includes vacuum gauge to monitor the vacuum process
Equipped with solenoid valve to prevent oil backflow in case of power failure
On/Off switch
Oil level indicator
1 bottle of oil included
Power cord with Schuko plug
Ergonomic transport handle
TECHNICAL DATA:
Double-stage model
Suction capacity: 70 liters per minute
Motor power: 1/3 HP
Power supply: 220 V – 50Hz
Final vacuum: 3×10-1 Pa – 0.003 mbar
Oil in pump: 250 mL
Dimensions: 320x160x240 mm
Weight: 9.30 kg
SAE 1/4″ connection
CE certified
MANOMETER SET:
4-way manometer block with blue-black-yellow-red control valves on aluminum body
Universal with scales for R410A / R32 / R407C / R134A
Manometer hook
Four hoses (1500 mm long) with 5/16 SAE connections at both ends, one with a service valve
2 male 5/16 SAE valves for R32 and R410A with service valves for independent closures
2 male 5/16 SAE to female 1/4 SAE valves for R407C and R134A with service valves for independent closures
1 plastic carrying case for the manometer set
FLARING TOOL:
Fully metal flare tool and dies
Dies in inches for tubes: 5/16 – 1/4 – 3/8 – 1/2 – 5/8 – 3/4
Dies in metric sizes for tubes: 6 – 8 – 10 – 12 – 16 – 19 mm
Friction system with automatic flange break-off when the flaring process is completed
Equipped with a special eccentric spiral tip for more precise flaring
Tube cutter for 4-28 mm with retractable deburring tool
Steel flaring blades for internal and external flaring
TORQUE WRENCH:
Set of wrenches for the correct tightening of coupling fittings in systems with R22, R410A, R407C, R134A
Includes adjustable torsion arm
Torque range from 10 to 75 Nm
Set consists of 6 wrenches for sizes: 17-22-24-26-27-29 mm
Supplied in a carrying case
Product code: KT.PROF7016
