Descrizione

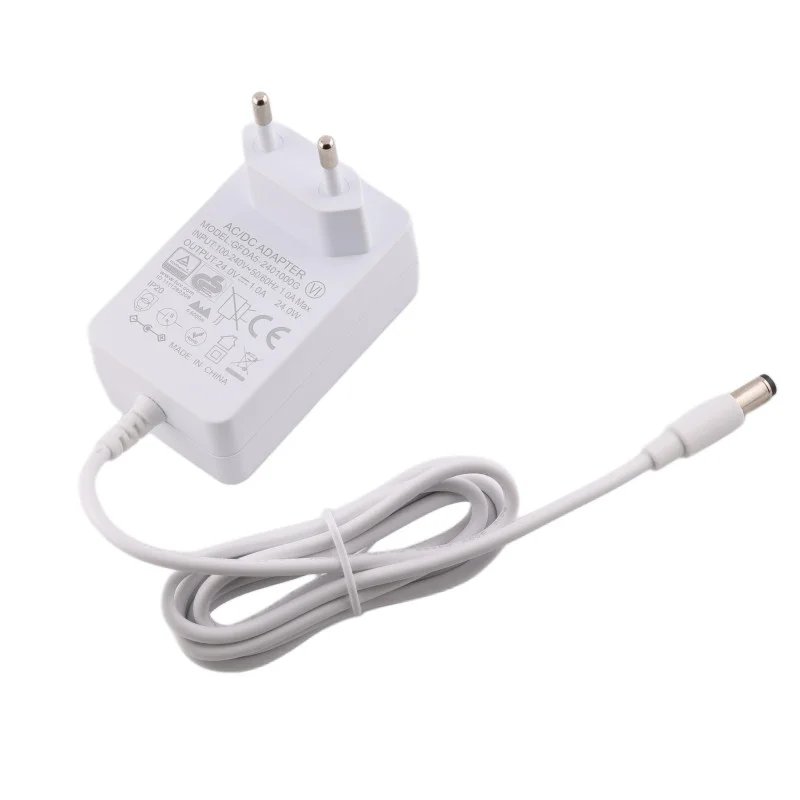

The socket power supply with an output voltage of 24 V DC and a current of 1 A is designed for reliable power supply of electronic devices with lower consumption. Thanks to the standard DC connector 5.5 × 2.1 mm, it is suitable for 24 V LED strips, LED modules, control electronics and other devices requiring stable DC voltage.
Technical specifications
Input voltage: 100-240V AC
Input frequency: 47-63 Hz
Output voltage: 24 V DC
Output current: 1 A
Maximum power: 24W
Connector: DC 5.5mm (outer diameter) × 2.1mm (inner diameter)
Connector polarity: positive pole on inner contact
Protection: IP20
Dimensions: 83 × 43 × 31 mm
Weight: 95g
Color: white
Functions and features
Stable output voltage suitable for sensitive electronics
Low consumption and good efficiency
Standard DC connector ensuring wide compatibility
Socket design without installation required
Compact design suitable even for limited spaces
Ideal for
24 V LED strips and LED modules with lower power consumption
LED controllers, switching and control modules
Automation and testing applications
Power supply for smaller industrial devices
Package contents
Power supply 24 V DC / 1 A with EU mains plug
Why choose this product?
Reliable solution for 24V devices with lower power consumption
Compact dimensions and low weight
High compatibility thanks to common DC connector
Suitable for professional and hobby use
