Descrizione

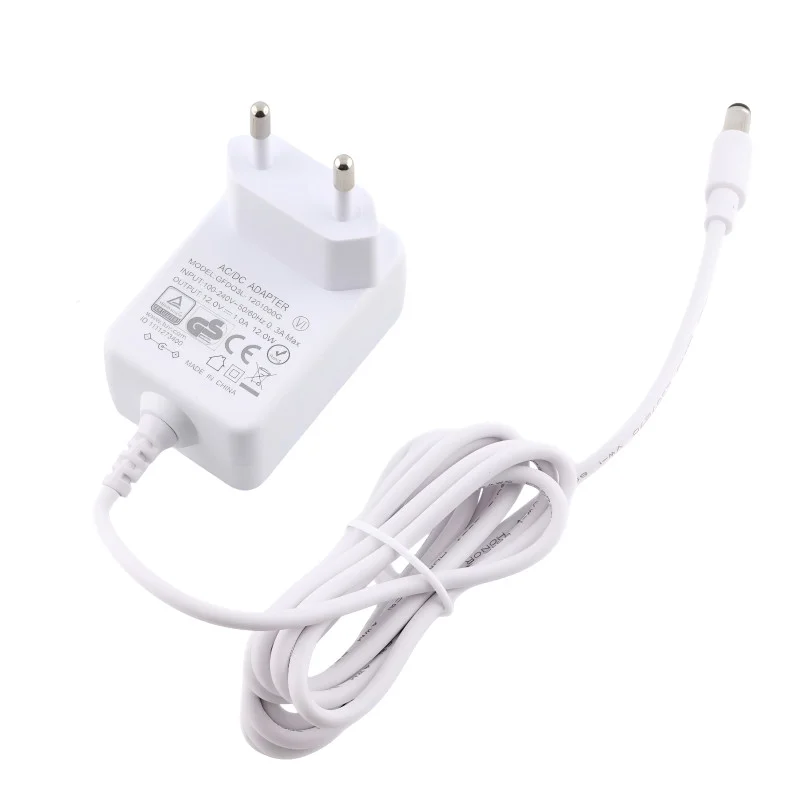

The compact socket power supply with an output voltage of 12 V DC and a current of 1 A is designed to power a wide range of electronic devices. Thanks to the standard DC connector 5.5 × 2.1 mm, it is an ideal choice for LED strips, LED modules, control units, small appliances and other electronics requiring stable DC voltage.
Technical specifications
Input voltage: 100-240V AC
Input frequency: 47-63 Hz
Output voltage: 12V DC
Output current: 1 A
Maximum power: 12W
Connector: DC 5.5mm (outer) × 2.1mm (inner)
Connector polarity: positive pole on inner contact
Protection: IP20
Dimensions: 76 × 41 × 29 mm
Weight: 75g
Color: white
Functions and features
Wide input voltage range allows use throughout the EU and other countries
Stable output voltage suitable for sensitive electronics
Standard DC connector ensures high compatibility
Compact design suitable even for limited spaces
Socket design without the need for external assembly
Ideal for
Power supply for LED strips and LED modules 12 V
Control units, LED controllers and switching modules
Small electronic devices and consumer electronics
Test and laboratory applications
Package contents
12 V DC / 1 A power supply with EU mains plug
Why choose this product?
Proven and reliable solution for 12V applications
High compatibility thanks to common DC connector
Compact dimensions and low weight
Excellent price-performance-quality ratio
