Descrizione
Reliable power supply designed for power LEDs with a power of 3 × 3 W to 4 × 3 W. Provides a stable current of 650 mA and safe operation of LED lighting without flickering. Ideal for installation in spotlights, ceiling panels or decorative lighting applications.
Technical specifications

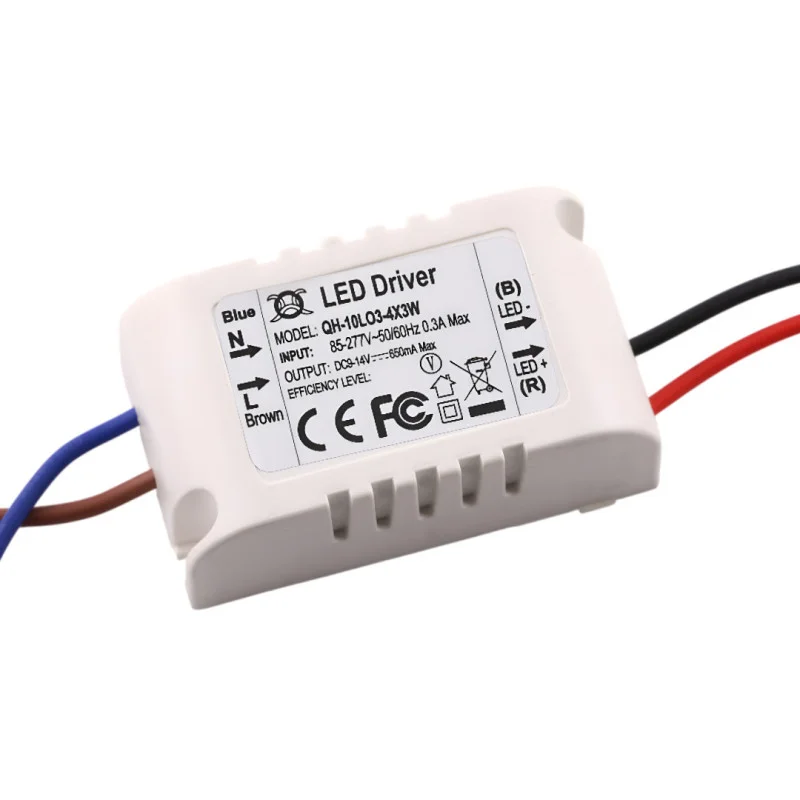

Model: QH-10L03-4X3W
Input voltage: AC 85-277V / 50-60Hz
Output voltage: DC 9-14V
Output current: 650 mA ± 5%
Power: 9-12W
Dimensions: 56 × 32 × 22 mm
Efficiency: 85%
Protection: IP40
Certification: CE, FCC
Functions and features
Stabilized output current to protect LEDs from overload.
The universal input range of 85-277 V AC allows for worldwide use.
Built-in protection against short circuit, overload and overheating.
Compact plastic case with easy assembly.
Color-coded wires for quick and safe connection blue and brown (AC IN), red and white (DC OUT).
Ideal for
Power supply for 3 W LEDs (34 pcs in series).
LED spotlights, ceiling lights and light panels.
Advertising, decorative and architectural lighting.
Home and professional lighting installations.
Package contents
1 x LED driver QH-10L03-4X3W 650 mA
Why choose this product?
High efficiency and stable output for longer LED life.
Safe operation thanks to multi-level protections.
Wide compatibility with 9-12W LED chips and modules.
Compact dimensions and low weight for easy integration.
The ideal choice for reliable LED power supply in professional installations.
