Descrizione

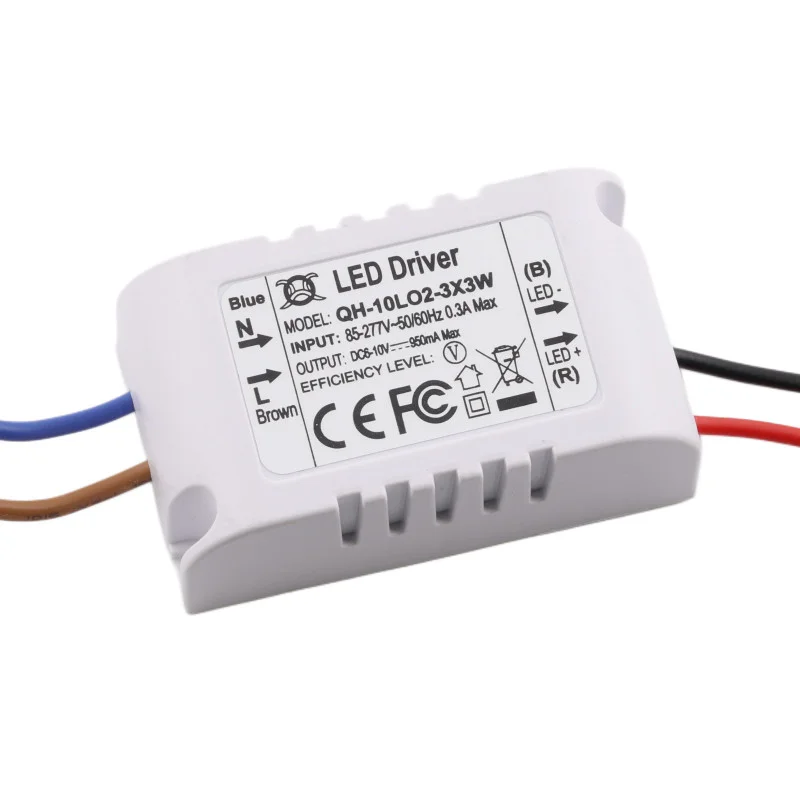

Compact power supply for power LEDs with a constant current of 900 mA. Designed to power 2 to 3 LED chips (3 W each) with a total power of around 10 W. Ideal for stable and safe power supply of LED modules, spotlights or luminaires from a 230 V AC power supply.
Technical specifications
Input voltage: AC 85-277V / 50-60Hz
Output voltage: DC 5-10V
Output current: 900 mA ±5%
Output power: up to 10 W (2-3 x 3 W LEDs)
Efficiency: up to 88%
PF (Power Factor): 0.6 0.95 depending on version
Protection: IP40
Dimensions: 56 × 32 × 22 mm (external box)
Material: plastic / aluminum / PCB
Certification: CE, RoHS, FCC
Functions and features
Constant current for reliable and uniform LED lighting
Wide input voltage range AC 85-277 V – suitable for worldwide use
Protection against short circuit, overload and overheating
High efficiency and low energy losses
Stable, flicker-free output suitable for sensitive optical applications
Ideal for
Power supply for power LED chips 23×3 W
LED spotlights, luminaires, advertising panels and display case lighting
Home and industrial projects with low voltage LED sources
Package contents
1 × LED driver
Why choose this product?
Stable and safe power supply for LED modules with constant current
High efficiency and reliability in a compact design
Possibility of choosing a design for indoor and outdoor installation (IP67)
CE and RoHS certifications guarantee safety and quality
