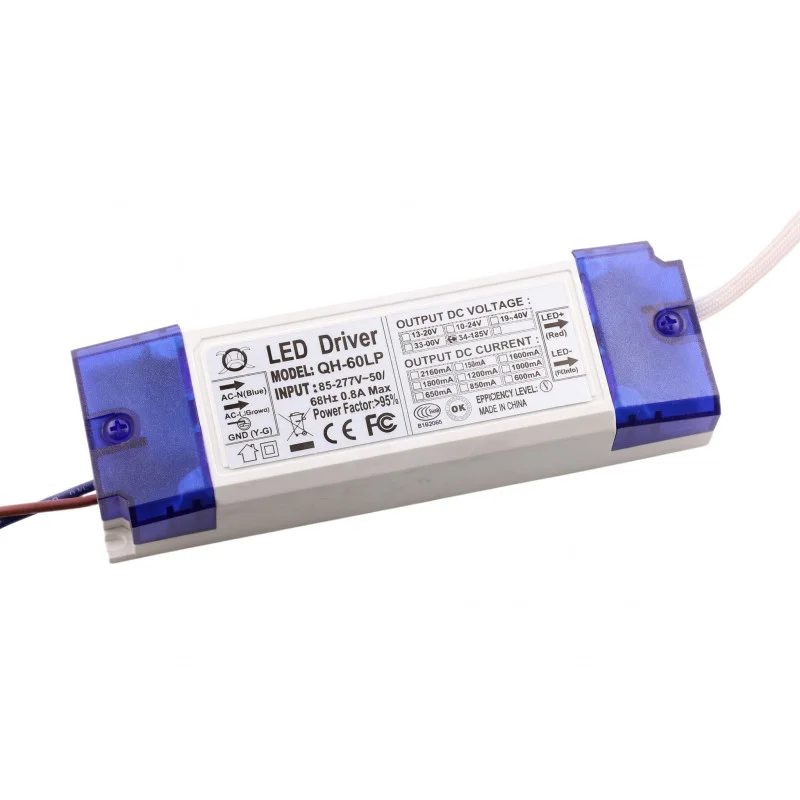

This constant current LED driver is designed to power high-power LED modules in an 1830x3W configuration. It serves as an external power supply with an AC mains input and a DC output with a limited current of 600 mA. It is suitable for applications requiring a stable constant current power supply for an LED load within the corresponding output voltage range.
Technical Specifications
Output principle: Constant current
Designed for: 1830x3W LED
Input voltage: AC 85277 V
Input frequency: 50/60 Hz
Output voltage: 54105 V DC
Output current: 600 mA
Dimensions: 140 × 45 × 28 mm
Design: Plastic housing
Certification: CE, RoHS
Features and Properties
Powers LED loads with a constant current of 600 mA.
Wide input mains voltage range for fixed installations.
External design with lead wires for AC input and DC output.
Compact, elongated plastic body suitable for integration into luminaires and lighting assemblies.
Designed for LED modules or assemblies with electrical parameters matching the 54105 V DC output at 600 mA.
Ideal For
Powering series-connected high-power LEDs.
LED luminaires, floodlights, and other lighting applications with constant current control.
Service replacement or construction of LED power supply units requiring a 600 mA current and the corresponding output voltage.
Package Contents
1x LED driver 600 mA 54105 V DC
Why Choose This Product
Parameters perfectly match the power requirements of 1830x3W LED assemblies.
Constant current design is ideal for high-power LEDs that require current control.
Wide input range of AC 85277 V allows use in various mains conditions.
Specifically listed output voltage, current, and dimensions ensure easy compatibility checks during design or replacement.
Installation and Operating Instructions
Before connecting, verify that the LED load is designed for a constant current of 600 mA and its operating voltage falls within the 54105 V DC range.
Ensure correct connection of the AC input and DC output polarity.
Perform the installation with the power disconnected.
Install the driver in a way that ensures adequate ventilation and avoids mechanical stress or moisture, unless the device is specifically rated for such environments.
Professional installation is recommended for connecting to the mains voltage.
Safety Warnings
The device operates with a mains input voltage of AC 85277 V and an output of up to 105 V DC. Improper handling poses a risk of electric shock.
Do not connect an LED load with an incorrect current or voltage rating.
Incorrect polarity connection or a short circuit on the output can damage the driver or the LED module.
Do not install in environments for which the product is not intended.
Any modification to the structure or connecting while under voltage is strictly prohibited.
