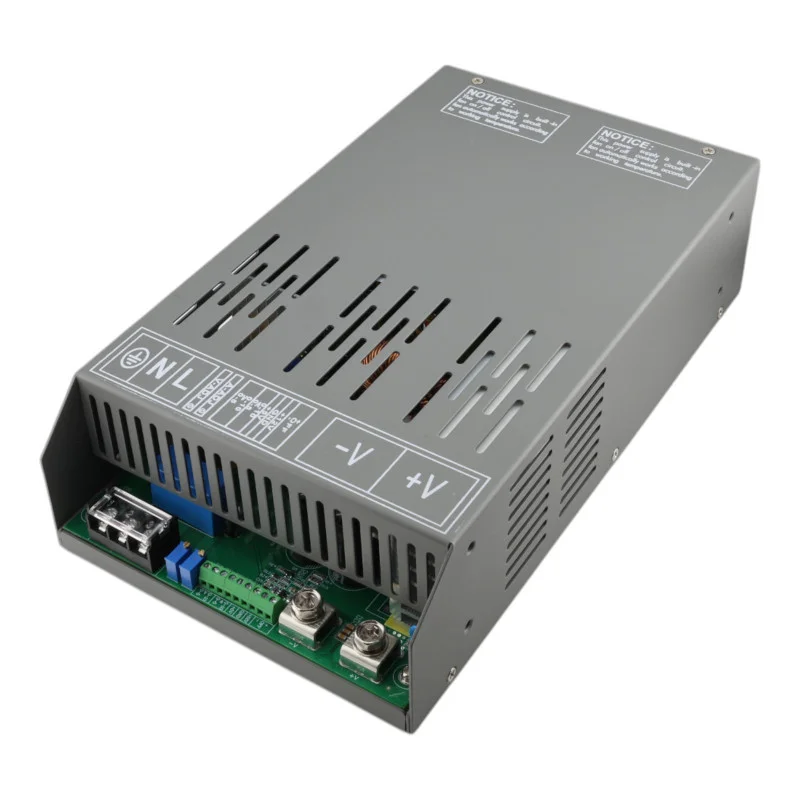

Introducing the series of highly reliable industrial switched power supplies IPS-SP-1500, designed for demanding applications requiring precisely regulated power. Each model offers smooth regulation of output voltage and current, allowing precise adjustment to your application’s requirements. These robust metal-cased supplies with IP20 protection are ideal for installation in distribution cabinets and industrial systems.
Key Features:
Variable Output Voltage: Continuously adjustable from 0 V to 72 V DC using a precise adjustment trimmer
High Output Current: Stable 20.8 A for demanding applications
Wide Input Voltage Range: 180-264 V AC, 45-65 Hz
High Efficiency: 90% for economical operation with minimal heat losses
Active Cooling: Ensures optimal operating temperature even under high load
Comprehensive Protective Functions:
Overload protection (105%-150%)
Overvoltage protection
Short circuit protection with automatic recovery
Thermal protection at 70 °C with automatic recovery when falling below 50 °C
Practical Design:
Standard terminal block with screws for easy connection
LED indicator for visual power check
Durable metal construction ensuring long lifespan
Advanced Control Functions:
External Potentiometer: Remote control of voltage and current
Analog Voltage Control: Support for 0-5 V / 0-10 V control signal
Auxiliary Power Output: 12 V 0.5 A for powering external devices
Remote Switching: Default state on, off by high level (3 V-12 V)
Ideal Applications:
Automation Systems: Control of industrial processes and production lines
Servo Drives and Motors: Precise power control for various drives
Telecommunication Equipment: Reliable power supply for critical communication systems
Industrial Control Systems: Stable power supply for PLC and other control elements
Testing and Measuring Equipment: Precise power supply for laboratory and testing applications
Entry Gates and Security Systems: Uninterruptible power supply for security elements
Technical Specifications:
Input Voltage: 180-264 V AC, 45-65 Hz
Output Voltage: 0-72 V DC
Output Current: max. 20.8 A (72 V DC)
Output Voltage Accuracy: ± 1.0%
Regulation with Input Voltage Change: ± 1.0%
Regulation with Load Change: ± 1.0%
Efficiency: 90%
Start-up Time: 1500 ms, 100 ms at 230 V AC (full load)
Output Voltage Ripple: 200-1000 mV (depending on model)
Insulation Resistance: 100 M at 500 V DC (25 °C, 70% RH)
Dielectric Strength: I/P-O/P: 1.2 kV AC, I/P-FG: 1.2 kV AC, O/P-FG: 0.5 kV AC
Operating Temperature: -20 °C to +60 °C
Operating Humidity: 0-90% RH (non-condensing)
Vibration Resistance: 10-500 Hz, 2 G (tests 10 min/cycle, axes X, Y, Z for 60 min.)
Dimensions: 277 × 155 × 70 mm (L × W × H)
Weight: 2.4 kg
